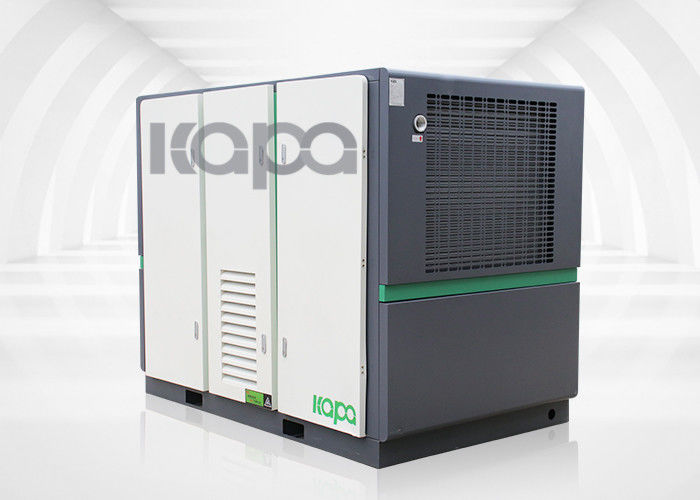

kp110kw-0.8mpa 380V/220V/415V Effcient and Energy saving double stage air compressor.
Specification
Model |
Motor Power HP/KW |
Lubricating oil (L) |
Capacity M3/min |
Pressure MPA |
Noise db (A) |
Dimension mm |
Weight kg |
kp110kw-0.8 | 110KW/150HP | 110 | 24 | 0.8 | 70-74 | 2780*1580*2160 | 2900 |
Application
The series air compressor is widely applicable to auto repair, machinery, electronics, plastics, mining, hydropower, engineering, chemical, drilling. Blow molding machine, punch press, printing, food, transportation and other equipment, powerful, suitable for many fields.
Power (KW) | 22 | 37 | 45 | 55 | 75 | 90 | 110 |
Capacity/Pressure (m3/min/MPa) | 4.6-4.1/ | 8.0-7.1/ | 10.9-9.7/ | 13.4-12/ | 17.6-16.5/ | 20/0.8 | 24/0.8 |
0.8-1.6 | 0.8-1.6 | 0.6-0.9 | 0.8-1.6 | 0.8-1.6 | |||
Lubricating oil (L) | 18 | 54 | 72 | 90 | 90 | 110 | 110 |
Oil content | W 3-5ppm | W 3-5ppm | W 3-5ppm | W 3-5ppm | W 3-5ppm | W 3-5ppm | W 3-5ppm |
Drive method | Direct driven | ||||||
Start way | PM VSD | ||||||
Noise db (A) | 60~70±2 | 60~70±2 | 60~70±2 | 60-70±2 | 70-74 | 70-74 | 70-74 |
Length (mm) | 1580 | 1880 | 2180 | 2180 | 2180 | 2780 | 2780 |
Width (mm) | 1080 | 1180 | 1430 | 1430 | 1430 | 1580 | 1580 |
Height (mm) | 1290 | 1520 | 1720 | 1720 | 1720 | 2160 | 2160 |
Weight (Kg) | 660 | 950 | 1530 | 1580 | 1620 | 2100 | 2900 |
Power (KW) | 132 | 160 | 200 | 220 | 250 | 315 | |
Capacity/Pressure (m3/min/Mpa) | 26.95/0.8 | 33/0.8 | 45.71/0.8 | 47/0.8 | 54/0.8 | 63/0.8 | |
Lubricating oil (L) | 125 | 125 | 175 | 175 | 200 | 200 | |
Drive method | Direct driven | ||||||
Start way | PM VSD | ||||||
Noise db (A) | 78-82 | 78-82 | 78-82 | 78-82 | 78-82 | 78-82 | |
Length (mm) | 2980 | 2980 | 3650 | 3650 | 3650 | 3650 | |
Width (mm) | 1880 | 1880 | 1980 | 1980 | 1980 | 1980 | |
Height (mm) | 2160 | 2160 | 2150 | 2150 | 2150 | 2150 | |
Weight (Kg) | 3050 | 3850 | 5300 | 5300 | 5400 | 5600 |
Advantages of Kapa brand
Innovate technology to protect the environment
Advantages:
1. High quality control(CE,SGS,ISO14001/Energy saving certificate)
2. Fast Delivery( 25-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
Q1: Why customers choose Kapa?
A: KAPA has 20 years of experiences specialized in screw air compressor industry. R & D team and engineers originally from Sullair, with SGS and ISO certified management and control system. We warmly welcome your small trial order for quality and market test.
Q2: Are you a direct manufacturer or just a trading company?
A:We are a professional manufacturer with big modern workshops situated in Pingxiang Lianhua Industrial Park,Jiangxi Province, China. Both OEM & ODM service are available.
Q3: How about your delivery time?
A: Generally 25-30 days. While if ordering special designs or customized models, shipping time will be somewhat longer. Exact time please contact sales in advance to confirm then.
Q4: HOW LONG IS YOUR AIR COMPRESSOR WARRANTY?
A: One Year for the whole machine and two years for screw air-end.
Q5: HOW ABOUT YOUR AFTER-SALES SERVICE?
A:We provide customers with installation and commissioning online instructions.well-trained engineer will troubleshoot within 24-48 hours through online videos or calls.
