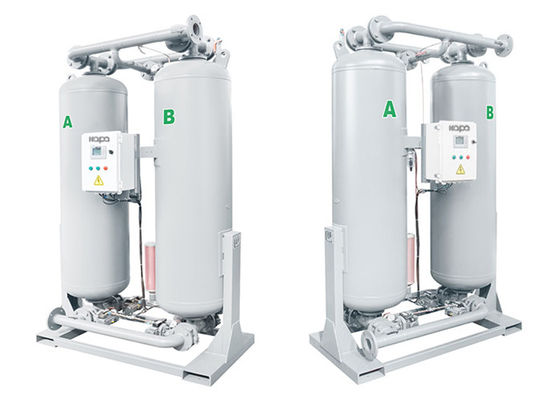

30hp 3.6m3/min Absorption Air Dryer

30hp 3.6m3/min Absorption Air Dryer

  • High Light

    0.1KW/H Compressed Air Treatment Equipment

    ,

    320kg Compressed Air Treatment Equipment

    ,

    0.1KW/H Adsorption Air Dryer

  • Type
    Absorption Air Dryer
  • Model
    Kpb1
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Pressure Dew Point(PDP)
    -40℃/-70℃
  • Treatment Capacity(Nm³/min)
    3.6m3/min
  • Dimensions(mm)
    730*470*1600
  • Weight(kg)
    320
  • Power Supply
    220V/50HZ
  • Place of Origin
    CHINA
  • Brand Name
    Kapa
  • Certification
    CE ISO SGS
  • Model Number
    Kpb1
  • Minimum Order Quantity
    1
  • Price
    USD 1500-36000 PER UNIT
  • Packaging Details
    Ply-wood case
  • Delivery Time
    10-15 DAYS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    5000 SETS PER MONTH

30hp 3.6m3/min Absorption Air Dryer

3.6 m³/min Energy saving and high quality Absorption air dryer​.



Describe:



The saturated water content of compressed air is related to temperature, and the water content decreases when the temperature drops. A freezing dryer is to use the principle of refrigeration to cool the compressed air, and discharge the condensate water, so as to achieve the purpose of drying compressed air.The use of Kapa freeze dryer can effectively avoid the occurrence of condensation water, corrosion and leakage of air pipes, and the decline of machine operation efficiency.



Specification



Model Specification Kpb1
Treatment capacity (m³min) 3.6
Pressure dew point(PDP) -40℃/-70℃
product size 730*470*1600
weight(kg) 330
Power Supply 220V/50HZ
Overall power(KW/h) 0.1





30hp 3.6m3/min Absorption Air Dryer 0



Our advantage



1 Stable performance,Keep low dew point for a long time to avoid condensate.



2 Reliable operation,High quality components, intelligent controller, automatic adjustment of operating load

The maintenance time interval is long and the times of shutdown maintenance are reduced.



3 Easy to use,Integrated design, compact structure and small floor area.Plug and play for easy installation.Barrier free maintenance.



Product features:



Large capacity design is adopted, and 10% margin is reserved on the basis of the design to ensure stable dew point at the outlet of the equipment, which can adapt to the change of load and the old 4 adsorbent, with long switching period and good comprehensive performance The regeneration heating adopts ambient air, without consumption of product gas, adopts complete regeneration process, and the adsorbent can be completely regenerated .The cooling process is added to stabilize the dew point of the outlet air and effectively ensure the quality of the air source. The finished product is assembled and delivered through the pipeline pressure maintaining and leakage detection. The installation is simple.Specially customized high performance adsorbent can achieve excellent dew point. The blower of famous brand has reliable performance and low energy consumption;The high temperature resistant pneumatic valve with special material and double electric magnetic head pneumatic valve is adopted, so the reliability and service life are greatly improved.





The Work flow chart :



30hp 3.6m3/min Absorption Air Dryer 1
