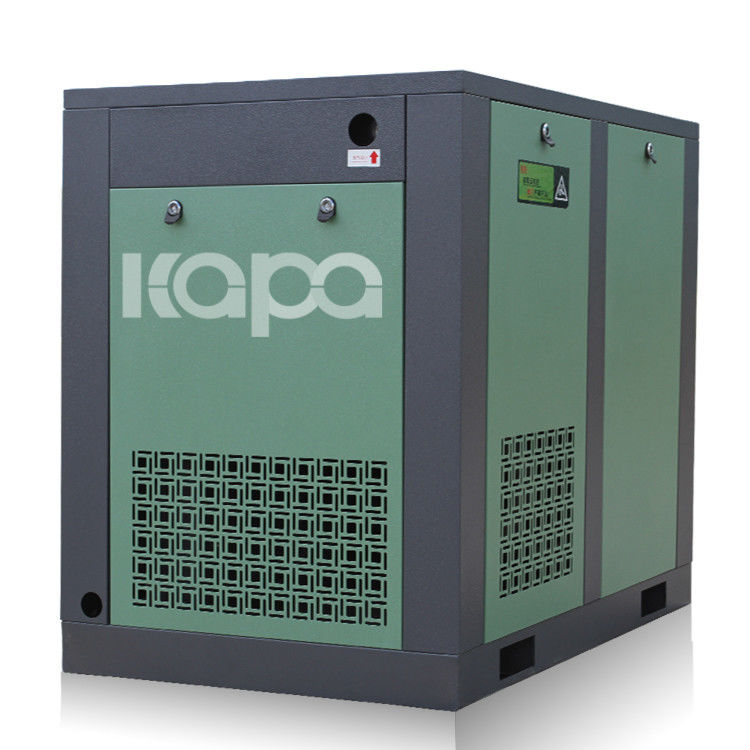

permanent Magnet 37kw 50Hp 6.05m3/Min Variable Speed Drive Air Compressor

Place of Origin China
Brand Name Kapa
Certification CE, ISO14001, SGS
Model Number KY-50HP
Minimum Order Quantity 1
Price Negotiation
Packaging Details Wood box
Delivery Time 25-35 days
Payment Terms L/C, T/T
Supply Ability 5000 SET PER MONTH
Product Details
Drive Type Direct Type Permanent Magnet Variable Frequency
Condition New Warranty 2 Year
Cetification CE, ISO14001, SGS Cooling Mode Air Cooling
Dimension (mm) 1340*1000*1270 Out Let Diameter (inch) RP1-1/2
Ambient Temperature ℃ 2℃-45℃ Weight 448kg
High Light

6.05m3/Min Variable Speed Drive Air Compressor

,

50Hp Variable Speed Drive Air Compressor

,

6.05m3/Min VFD For Air Compressor

Leave a Message
Product Description

37kw / 50Hp 6.05m³/min Permanent Magnet Variable Frequency air compressor 1340*1000*1270MM



Description

The maintenance cost of the permanent magnet variable frequency air compressor is reduced
Because of the high-efficiency and energy-saving control system, the software startup of the air compressor reduces the electrical impact on the electrical components of the motor, and the starting current is small, which prolongs the life of the contactor of the motor. The software startup of air compressor reduces the mechanical impact on equipment, and the service life of motor bearings, main engine bearings and gear boxes is prolonged. The control device of the high-efficiency energy-saving controller makes the air compressor in the loading state most of the time, and all kinds of related solenoid valves and pneumatic components greatly reduce the number of actions, so the failure rate of both electrical and mechanical parts is greatly reduced. Support the cost of replacing parts and labor.
In addition, the inverter control device makes the air compressor in the loading state most of the time, the air inlet filter is always in the forward filtering state, and the air filter is in the reverse filtering state when unloading. The use of the inverter greatly reduces the reverse filtering time of the inlet filter and prolongs the service life of the filter element.
The permanent magnet variable frequency air compressor reduces the capacity of the power grid of the factory
When star triangle is used for starting, the starting current is still relatively large, and when the capacity of the factory power grid is limited, the upstream air switch will trip, and the cost of expansion of the factory power grid can be saved by using the high-efficiency energy-saving controller.
Permanent magnet variable frequency air compressor reduces production loss
The permanent magnet variable frequency air compressor uses a high efficiency and energy saving controller, and monitors more than 20 parameters, such as current, voltage, speed, torque and power consumption, so the system is highly intelligent. Make the air system more stable and reliable, reduce the downtime and reduce the production loss.
 Permanent magnet variable frequency air compressor can reduce noise
When the exhaust volume decreases, the speed of the motor slows down, and the noise of the air compressor is much smaller than that at full speed. Unloading operation time is reduced, and emptying noise is also reduced. Are the five advantages of permanent magnet variable frequency air compressor enough to make you feel excited? It can not only reduce the cost, save energy and protect the environment, but also has low working efficiency and noise pollution.



Specification

Model KY-10HP KY-15HP KY-20HP KY-25HP KY-30HP KY-40HP
Motor Power 7.5kw 11kw 15kw 18.5kw 22kw 30kw
Capacity/Pressure (m3/min/MPa) 1.06/0.8 1.71/0.8 2.27/0.8 2.85/0.8 3.3/0.8 5/0.8
Noise db(A) 70±2 70±2 70±2 70±2 70±2 70±2
Length (mm) 900 1080 1080 1250 1250 1250
Width(mm) 650 750 750 850 850 850
Height(mm) 870 980 980 1140 1140 1140
Weight(Kg) 155 224 235 310 320 365
Outlet Diameter inch: Rp1/2 Rp3/4 Rp3/4 Rp1 Rp1 Rp1

Model KY-50HP KY-60HP KY-75HP KY-100HP
Motor Power 37kw 45kw 55kw 75kw
Capacity/Pressure (m3/min/MPa) 6.05/0.8 7.1/0.8 9.25/0.8 12.0/0.8
Noise db(A) 60-70±2 60-70±2 70-76±2 70-76±2
Length (mm) 1340 1340 1900 2000
Width (mm) 1000 1000 1250 1250
Height(mm) 1270 1270 1600 1670
Weight(Kg) 448 500 840 970
Outlet Diameter inch: Rp1-1/2 Rp1-1/2 Rp2 Rp2





Unique design

permanent Magnet 37kw 50Hp 6.05m3/Min Variable Speed Drive Air Compressor 0





Advantages of Kapa brand



Innovate technology to protect the environment

Kapa listens, understands and meets the needs of customers

Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kapa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.



Advantages:

1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 25-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)



Why choose us



Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.



FAQ



Q1: Why customers choose Kapa?

A: KAPA has 20 years of experiences specialized in screw air compressor industry.

R & D team and engineers originally from Sullair, with SGS and ISO certified management and control system.

We warmly welcome your small trial order for quality and market test.



Q2: Are you a direct manufacturer or just a trading company?

A:We are a professional manufacturer with big modern workshops situated in Pingxiang Lianhua Industrial Park,

Jiangxi Province, China. Both OEM & ODM service are available.



Q3: How about your delivery time?

A: Generally 25-30 days. While if ordering special designs or customized models, shipping time will be somewhat longer.

Exact time please contact sales in advance to confirm then.



Q4: HOW LONG IS YOUR AIR COMPRESSOR WARRANTY?

A: One Year for the whole machine and two years for screw air-end.



Q5: HOW ABOUT YOUR AFTER-SALES SERVICE?

A:We provide customers with installation and commissioning online instructions.well-trained engineer

will troubleshoot within 24-48 hours through online videos or calls.
