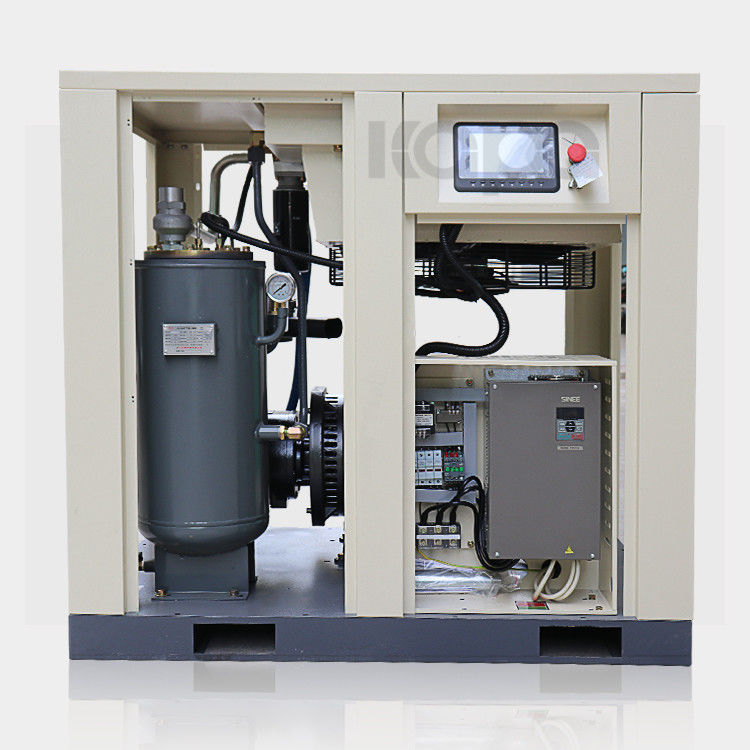

PM VSD Air Cooling 18.5kw 25Hp 2.85m3/Min VSD Screw Air Compressor

Place of Origin China
Brand Name Kapa
Certification CE, ISO14001, SGS
Model Number KY-25HP
Minimum Order Quantity 1
Price Negotiation
Packaging Details Wood box
Delivery Time 20-25 days
Payment Terms L/C, T/T
Supply Ability 5000 SETS PER MONTH
Product Details
Drive Type Direct Type Permanent Magnet Variable Frequency
Condition New Warranty 2 Years For Main Parts, 1 Year For Whole Machine
Cetification CE, ISO14001, SGS Cooling Mode Air Cooling
Dimension (mm) 1250*850*1140 Out Let Diameter (inch) RP1
Ambient Temperature ℃ 2℃-45℃ Weight 310kg
High Light

2.85m3/Min VSD Air Compressor

,

18.5kw 25Hp VSD Air Compressor

,

2.85m3/Min 25 Hp Air Compressor

Leave a Message
Product Description

18.5kw / 25Hp 2.85m³/min Permanent Magnet Variable Frequency Air Compressor 1250*850*1140MM

Description



permanent magnet variable frequency air compressor advantages



Stainless Steel Piping Design

The piping arrangement is simple and beautiful. Stainless steel piping designed to effectively prevent rust in the pipeline, and avoid safety accidents caused by leakage of the pipeline.

More Advanced Technology. More Powerful Inverter

The standard equipment is equipped with a high-frequency reactor to reduce the high frequency generated by the inverter.



The soft start of the inverter reduces the peak current at startup,resulting in a smooth start and greatly reduced power costs.

Forced cooling of the inverter to prevent high temperature shutdown in Summer.



Standard equipment dust screen,circuit board surface coating treatment,high efficiency and durability against dirt,dust,moisture.

The special design of the heat dissipation area of the inverter ensures stable operation of the inverter under high temperature environment.

No idling occurs under any load conditions to achieve the desired power saving effect.


Quickly track changes in pressure,control pressure fluctuations within±0. 1 bar,and optimize the use of the power to accurately provide the right amount of air as needed.


Oil Filter

The imported brand is used to reliably filter the dirt particles in the lubricating oil to ensure the smoothness and lubrication of the oil system at 0. 1 micron.
Air Filter
The imported brand is used to reliably remorve e dirt from the air. The dust particles in the air are controlled below 0. 3 microns and the filtration accuracy is as high as 99. 99%.

Current Models and Specifications for selection



Model KY-10HP KY-15HP KY-20HP KY-25HP KY-30HP KY-40HP
Motor Power 7.5kw 11kw 15kw 18.5kw 22kw 30kw
Capacity/Pressure (m3/min/MPa) 1.06/0.8 1.71/0.8 2.27/0.8 2.85/0.8 3.3/0.8 5/0.8
Noise db(A) 70±2 70±2 70±2 70±2 70±2 70±2
Length (mm) 900 1080 1080 1250 1250 1250
Width(mm) 650 750 750 850 850 850
Height(mm) 870 980 980 1140 1140 1140
Weight(Kg) 155 224 235 310 320 365
Outlet Diameter inch: Rp1/2 Rp3/4 Rp3/4 Rp1 Rp1 Rp1

Model KY-50HP KY-60HP KY-75HP KY-100HP
Motor Power 37kw 45kw 55kw 75kw
Capacity/Pressure (m3/min/MPa) 6.05/0.8 7.1/0.8 9.25/0.8 12.0/0.8
Noise db(A) 60-70±2 60-70±2 70-76±2 70-76±2
Length (mm) 1340 1340 1900 2000
Width (mm) 1000 1000 1250 1250
Height(mm) 1270 1270 1600 1670
Weight(Kg) 448 500 840 970
Outlet Diameter inch: Rp1-1/2 Rp1-1/2 Rp2 Rp2





Unique design

PM VSD Air Cooling 18.5kw 25Hp 2.85m3/Min VSD  Screw Air Compressor 0

Advantages of Kapa brand



Innovate technology to protect the environment

Kapa listens, understands and meets the needs of customers

Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kapa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.



Advantages:

1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 25-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)



Why choose us



Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.



FAQ



Q1: Why customers choose Kapa?

A: KAPA has 20 years of experiences specialized in screw air compressor industry.

R & D team and engineers originally from Sullair, with SGS and ISO certified management and control system.

We warmly welcome your small trial order for quality and market test.



Q2: Are you a direct manufacturer or just a trading company?

A:We are a professional manufacturer with big modern workshops situated in Pingxiang Lianhua Industrial Park,

Jiangxi Province, China. Both OEM & ODM service are available.



Q3: How about your delivery time?

A: Generally 25-30 days. While if ordering special designs or customized models, shipping time will be somewhat longer.

Exact time please contact sales in advance to confirm then.



Q4: HOW LONG IS YOUR AIR COMPRESSOR WARRANTY?

A: One Year for the whole machine and two years for screw air-end.



Q5: HOW ABOUT YOUR AFTER-SALES SERVICE?

A:We provide customers with installation and commissioning online instructions.well-trained engineer

will troubleshoot within 24-48 hours through online videos or calls.
