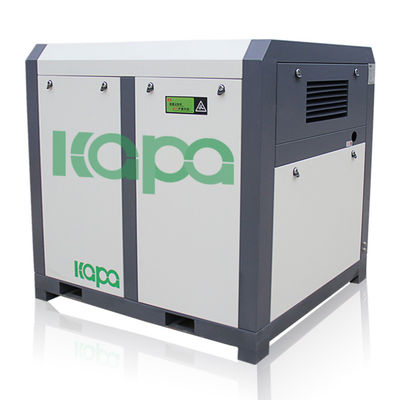

50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor

50Hz 30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor

  • High Light

    50Hz 30 hp screw air compressor

    ,

    3.6m3/min 30 hp screw air compressor

    ,

    free oil compressor

  • Applicable Industries
    Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works , Energy & Mining, Other, Power Industry, Chemical Fiber Industry, Pharmaceutical Industry, Cigarette Industry, Metallurgical Industry
  • Showroom Location
    Other
  • Condition
    New
  • Type
    Screw
  • Configuration
    Stationary
  • Power Source
    AC POWER
  • Lubrication Style
    Lubricated
  • Mute
    NO
  • Voltage
    380V/415V 50Hz ( Or 220V/440V 60Hz )
  • Dimension(L*W*H)
    1520*1060*1450 Mm
  • Weight
    840kg
  • Warranty
    1 Year
  • Working Pressure
    7 Bar, 8 Bar, 13 Bar, 12 Bar, 16 Bar
  • Air Capacity
    1.1m3/min
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Marketing Type
    New Product 2021
  • Warranty Of Core Components
    2 Years
  • Core Components
    Motor, Airend
  • Gas Type
    Air
  • Capacity/Pressure (m3/min/MPa)
    3.6m3/min 0.8MPa
  • Power V/HZ
    380V/415V 50Hz ( Or 220V/440V 60Hz )
  • Outlet Diameter Inch
    RP3/4
  • Packaging Details
    Ply-Wood Case
  • Delivery Time
    25-35 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    5000 Sets PER MONTH
  • After Warranty Service
    Video Technical Support
  • Port
    Shenzhen Or Shanghai Or Other Main Port
  • Place of Origin
    Guangdong, China
  • Brand Name
    Kapa (or OEM brand), Kapa (or OEM brand)
  • Model Number
    KF-30HP, KF-30HP
  • Price
    $9,100.00/sets >=1 sets
  • Packaging Details
    Ply-Wood case
  • Supply Ability
    5000 Set/Sets per Month

50Hz 30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor

Specification
Brand Name:
Kapa (or OEM)
Certification:
CE, ISO14001
Model Number:
KF-30HP
Capacity/Pressure (m3/min/MPa):
3.6m3/min 0.8MPa
Dimension mm:
1520*1060*1450 mm
Weight kg:
840kg
Power V/HZ:
380V/415V 50Hz ( or 220V/440V 60Hz )
Outlet Diameter inch:
RP3/4
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 0
Model
KF-10HP
KF-15HP
KF-20HP
KF-30HP
KF-50HP
Motor Power
7.5kw
11kw
15kw
22kw
37kw
Capacity/Pressure (m3/min/MPa)
1.2/0.8
1.6/0.8
2.5/0.8
3.6/0.8
6.2/0.8
Length (mm)
1000
1100
1260
1520
1760
Width(mm)
750
845
900
1060
1160
Height(mm)
1100
1260
1360
1450
1550

Weight(Kg)
400
460
620
840
1010
Noise dB(A)
72±2
72±2
72±2
72±2
72±2
Outlet Diameter inch:
Rp3/4
Rp3/4
Rp3/4
Rp1
Rp1-1/2
Model
KF-60HP
KF-75HP
KF-100HP
KF-150HP
KF-180HP
Motor Power
45kw
55kw
75kw
110kw
132kw
Capacity/Pressure (m3/min/MPa)
7.3/0.8
10/0.8
13/0.8
20/0.8
23/0.8
Length (mm)
1900
1900
1900
2200
2200
Width(mm)
1250
1250
1250
1600
1600
Height(mm)
1340
1340
1340
1700
1700

Weight(Kg)
930
970
1020
2330
2560
Noise dB(A)
76±2
76±2
76±2
76±2
76±2
Outlet Diameter inch:
Rp2
Rp2
Rp2
DN80
DN80
Product Description
Tags: Oil-free screw air compressor

50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 1
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 2
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 3
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 4
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 5
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 6
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 7
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 8
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 9
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 10
Company Profile



Guangdong Haoyu Mechanical Equipment Co.Ltd.
As a leading manufacturer of screw air compressors, Kapa has developed itself into a mature R&D, manufacturing and sales network system with direct factory in Pingxiang Jiangxi province + Operation Sales Center in Dongguan Gunagdong China. The strong manufacturing foundation we have built in Jiangxi is able to deliver reliable products from start to finish, we got you covered from installation to troubleshooting and to maintenance. By manufacturing the high quality screw air compressors at most economic costs, we help the customers to generate more profits and to grow rapidly. At Kapa, we don’t simply view you as simply as a client, we believe your business success is our success too and we desire for you to go as far as you can image, for that reason, it is our responsibility to provide you with the best products and services that work, both now and in the future.
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 11
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 12
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 13
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 14
ABOUT US
Let Our Air Compressor Serve And Light Up The World
Kapa specializes in R & D, manufacturing and sales of oil- injected power frequency, permanent magnet ,two -stage permanent magnet frequency conversion, low voltage and oil-less screw air compressors, screw blowers and screw vacuum pumps. With a deep industry background of more than 20 years, one step ahead ambition,we warmly welcomes people from all around the world to visit our factory and R&D center to guide the establishment of a wide range of business contacts and cooperation. Choosing Kappa Air compressors is to choose reliable quality and service, choose elegant culture and taste, choose a permanent and trustworthy partner and supplier! OEM for customers’ own brand is welcome!
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 15
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 16
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 17
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 18
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 19
Why Choose Us
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 20
Our Team >>>
Be Bold: be proactive, make decisions, take responsibility, try new things. Be Curious: ask questions, do some research, learn new techniques, study our clients and their actual requirements. Be Together: play an active role in the team, support your customers, colleagues, collaborate, have fun. Be Connected: meet people, make contacts, build relationships, see the bigger picture. Be Better: look for ways to improve, challenge ourselves, never stop learning, strive to do the best.
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 21
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 22
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 23
PARTNER
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 24
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 25
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 26
Sample Room
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 27
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 28
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 29
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 30
EXHIBITION
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 31
Certifications
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 32
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 33
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 34
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 35
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 36
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 37
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 38
Packing & Delivery
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 39
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 40
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 41
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 42
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
50Hz  30 Hp Screw Air Compressor , 3.6m3/Min 22kw Free Oil Compressor 43
FAQ
Q1: Why customers choose Kapa? A: KAPA has 20 years of experiences specialized in screw air compressor industry. R & D team and engineers originally from Sullair, with SGS and ISO certified management and control system. We warmly welcome your small trial order for quality and market test.
Q2: Are you a direct manufacturer or just a trading company? A: We are a professional manufacturer with big modern workshops situated in Pingxiang Lianhua Industrial Park,Jiangxi Province, China. Both OEM & ODM service are available.
Q3: How about your delivery time? A: Generally 25-30 days. While if ordering special designs or customized models, shipping time will be somewhat longer. Exact time please contact sales in advance to confirm then.
Q4: HOW LONG IS YOUR AIR COMPRESSOR WARRANTY? A: One Year for the whole machine and two years for screw air-end.
Q5: How about your after-sales service? A: We provide customers with installation and commissioning online instructions.well-trained engineer will troubleshoot within 24-48 hours through online videos or calls.
