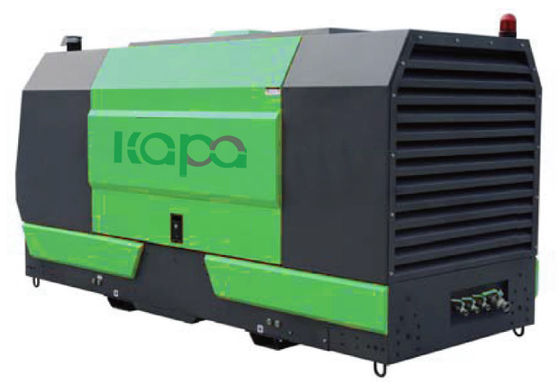

Portable Electric Motor Oil Injection 1.6Mpa Two Stage Screw Air Compressor

Place of Origin CHINA
Brand Name Kapa
Certification CE ISO SGS
Model Number KABO
Minimum Order Quantity 1
Price USD 1000-20000/unit
Packaging Details Ply-wood case
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 5000 units per month
Product Details
Type Screw Type Stage Two Stage
Driven Electric Motor Driving Way Direct Drive
Oil Type Oil Injected Frequency Power Frequency 50hz/60hz
Voltage 380/220V 480/415V 220/110V Cooling Method Air Cooled
Noise Level 70±2dB(A) Control System Intellegent Control System
High Light

1.6Mpa Two Stage Air Compressor

,

Oil Injection Two Stage Air Compressor

,

1.6Mpa Air Compressor For Industrial Use

Leave a Message
Product Description

Two Stage Air Compressor 7.5kw-250kw Rated Power 4.1-62m³/m  Air Flow 0.7-1.6Mpa Pressure

How to choose the right air compressor

In our daily sales work, we have noticed that some air compressor users don't really understand how to choose the right compressor specially if they are only responsible for the purchase and finance departments. So, we decided to start a course to help all friends, so if you are a DENAIR client or not, you are all welcome to ask us anytime if you have any question about Air Compressors.



Today, we will start with the basics; Capacity and pressure

Pressure and capacity are the two main specifications to look for when buying an air compressor;

- Pressure is expressed in bar or PSI (pounds per square inch).

- Capacity is expressed in CFM (cubic feet per minute), liters per second, or cubic meters per hour/minute.

Remember: pressure is 'how strong', capacity is 'how much.

- What's the difference between a very small and a very large compressor? It's not the pressure, it's the capacity.

What pressure do I need?

Most compressed air equipment is designed to operate at around 7 to 10 bar, For this reason, most people only need a compressor with a maximum pressure of 10 bar, For some applications, higher pressure is needed, like 15 or 30 bar. Sometimes even up to 200 - 300 bar or more (scuba diving and paintball for example).

How much pressure do YOU need?

Look at the tools or machines you use, it should state the required minimum pressure but be sure to check the specs or ask the manufacturer.

What size/capacity (CFM/m3*min) do I need?

Capacity is the amount of air that the compressor can pump out. It is expressed in CFM (cubic feet per minute).

How much capacity do you need?

Add up the requirements for all the air tools and machines that you have.

This is the maximum capacity that your equipment requires together.



Specifications



                                                            Model



Specification

KP37-0.8II KP45-0.8II

(M³/Min/Mpa) 6.9/0.8 9.63/0.8
Power Kw/ HP 37KW/50HP 45KW/60HP
Ambient Temperature 2℃-45℃ 2℃-45℃
Cooling Mode Air Cooled Air Cooled
Discharge Temp ≤Ambient +15℃ ≤Ambient +15℃
Lub Oil Capacity (Liter) 33.9L 42.3L
Noise Level Db(A) 70±2 70±2
Driven Mode Direct Drive Direct Drive
Power (V/Ph/Hz) 380V/3/50Hz 380V/3/50Hz
Starting Mode VFS VFS
Dimension (mm) 1880*1180*1520 2180*1430*1720
Net Weight (kg) 950 1530
Out let Diameter (inch) RP1-1/2 RP2





Advantages of Kapa

1. High-quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)



why choose us

The longer service life of the master machine
The rotor uses an asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with an effective and fully sealed air-cooling electromotor.



FAQ

Q1: Why customers choose Kapa?

A: KAPA has 20 years of experiences specialized in screw air compressor industry. R & D team and engineers originally from Sullair, with SGS and ISO certified management and control system. We warmly welcome your small trial order for quality and market test.

Q2: Are you a direct manufacturer or just a trading company?

A:We are a professional manufacturer with big modern workshops situated in Pingxiang Lianhua Industrial Park,Jiangxi Province, China. Both OEM & ODM service are available.

Q3: How about your delivery time?

A: Generally 20-30 days. While if ordering special designs or customized models, shipping time will be somewhat longer. Exact time please contact sales in advance to confirm then.

Q4: HOW LONG IS YOUR AIR COMPRESSOR WARRANTY?

A: One Year for the whole machine and two years for screw air-end.

Q5: HOW ABOUT YOUR AFTER-SALES SERVICE?

A:We provide customers with installation and commissioning online instructions.well-trained engineer will troubleshoot within 24-48 hours through online videos or calls.



Portable Electric Motor Oil Injection 1.6Mpa Two Stage Screw Air Compressor 0
