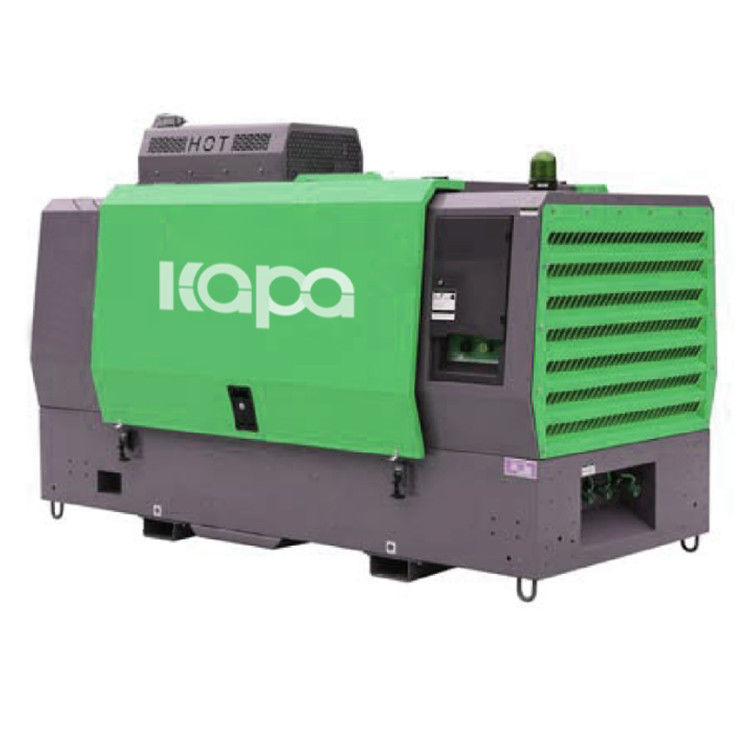

Single Stage 110KW 13bar Portable Screw Air Compressor
Product Details
| Type | Diesel Engine Screw Air Compressor | Condition | New |
|---|---|---|---|
| Weight | 3350 KG | Lubrication Style | Lubricated |
| Warranty | 1 Year | Dimension | 3750*1900*2250mm |
| Color | Green | Working Pressure | 13bar |
| High Light | 13bar Portable Screw Air Compressor,110KWPortable Screw Air Compressor,13bar Mobile Air Compressor |
||
Product Description
2 Years Warranty Portable Screw Air Compressor Mobile Air Compressor For Mining
KAPA new designed protable diesel srew air compressor
Cooperation terms:
1.Price: FOB any port in china.
2. Minimum order: 1set.
3. Payment: T/T, L/C, O/A ect.
4. Shipping: 7-15days.
Air end .Direct driven-No Gearing ,No Belt !
Rotors are the key elements in producing compressed air efficiently.KAPA air ends utilize a male 5lobe rotor(driving rotor)and a 6lobe female rotor(driven rotor).These state of the art Y profile rotors were introduced in the Kaiser series compressor.
They have the following characteristics:
Larger rotors are designed to ensure the airends have slower rotorspeeds to deliver compressed air more efficiently than smaller air ends
This translates into energy cost savings and a longer unit life.
The rotor profile minimizes leakage andthe tighter clearances achieved through state of the art manufacturing processes results in higher ,efficiency and improved lubrication.
The screw air compressor main configures as follows:
- 1. Main frame: Sweden Atla
- 2. Bearing:100% Sweden SKF (LIFE60000hours )
- 3. Solenoid valve: CEME Italy
- 4. Electro motor: ABB WOLONG
- 5. Thermostat valve : Austria Hoerbiger
- 6. Pressure sensor: Switzerland Huba imported with original
- 7. Container: Guangzhou Shenzhen
- 8. Oil filter: Germany MANN company imported with original
- 9. Oil and gas separator: Germany MANN company imported with original
- 10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original
- 11. Suction valve: Sweden Atlas imported with original
- 12. Pressure valve: Hoerbiger Austria company
- 13. PLC: Schneider Electric France
- 14. Oil system configuration of the pipeline were chrome-plated brass
- More than 80% of imported famous brand accessories!
Specifications of air compressor :
| Model No. | Portable Screw Air Compressors |
| Free air delivery | 10m³/min(353cfm) |
| Working pressure | 13Bar/190Psi |
| The head model no. | SKY148LH |
| Compression Stage: | Single |
| Noise level db (a) | 80±3 |
| Outlet connection size*Qty | G1 ½×1&G¾×1 |
| Engine | |
| Engine Model No: | YC6B150Z-K20 |
| Rated RPM | 1800r/min |
| Unload RPM | 1400r/min |
| Rated Power | 110KW/150HP |
| Package | |
| Wheel size * Qtys | 6.5-16*2 |
| Weight | 2380KGS |
| Dimension (mm) | 4080*1980*2350 |
our advantages:
1. KAPA is the only manufacturer in china which is able to mass produce the motor powered and diesel powered portable screw air compressor, breaking the monopoly of foreign brand in the screw air compressor.
2. Good adaptability: automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor.
3. Operation parameter is straightforward, with multiple warning and shut down protection device.
