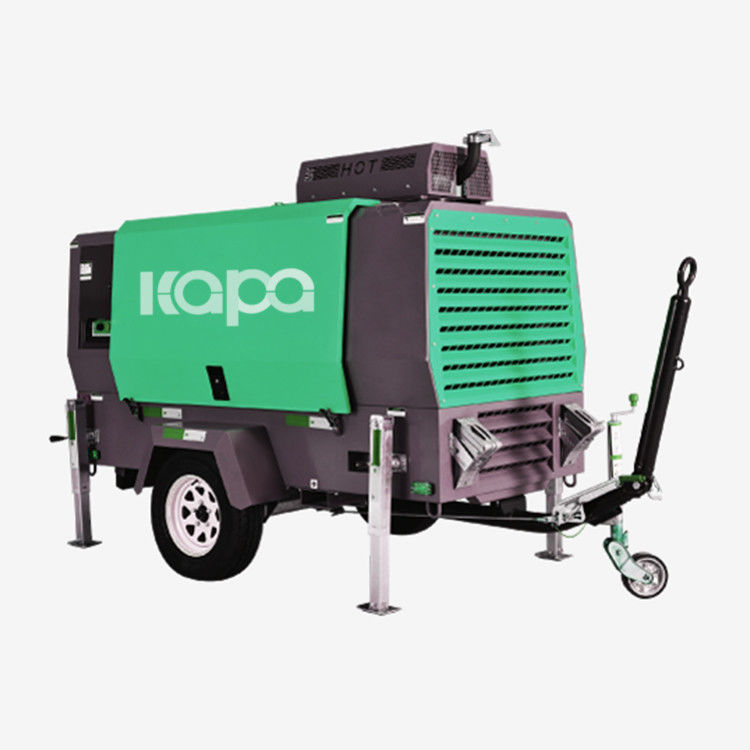

2.27m³ / min High efficiency stable Screw Air Compressor 15kw 20hp 0.8 Mpa
Description
Screw Air Compressor adopt coaxial integrated design to reduce energy loss of traditional transmission . Dust and sound insulation cotton, 70 dB, kappa technology appearance design, support a variety of model selection, highly integrated, high reliability.
Specification
| Model Specification | KB15-20P |
| Displacement/Pressure (M³/Min/Mpa) | 2.27/0.8 |
| CFM | 113.5 |
| Power Kw/ HP | 15KW/20HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air-Cooling |
| Discharge Temp | ≤Ambint+15℃ |
| Lub Oil Capacity Liter | 11.76 |
| Noise Level Db(A) | 70±2 |
| Driven Mode | Direct Drive |
| Power V/Ph/Hz | 380V/50Hz |
| Starting Mode | power frequency |
| Dimension mm | 1080*750*980 |
| Net Weight kg | 314 |
| Out let Diameter inch | RP3/4 |
Screw Air Compressor : Energy saving and stability + convenient maintenance + superior price = high cost performance ratio
Unique design
Air duct Design :The unique and efficient silent exhaust type is more convenient for cleaning and maintenance, suitable for any environment, and reduces the noise to the minimum .
Tubing Design :The whole series is connected with precision round steel pipe to reduce the wear in the oil circuit, the appearance is more concise, the pipeline is more reliable and the service life is longer.
All computer control :Excellent computer control panel is selected to monitor the operation parameters of the unit in real time, which can realize automatic timing start and stop, remote control, maintenance plan, positive and reverse control, etc.
Screw air compressor work flow chart
Advantages of Kapa brand
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us ?
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
Our products are sold all over the world, you can rest assured.
