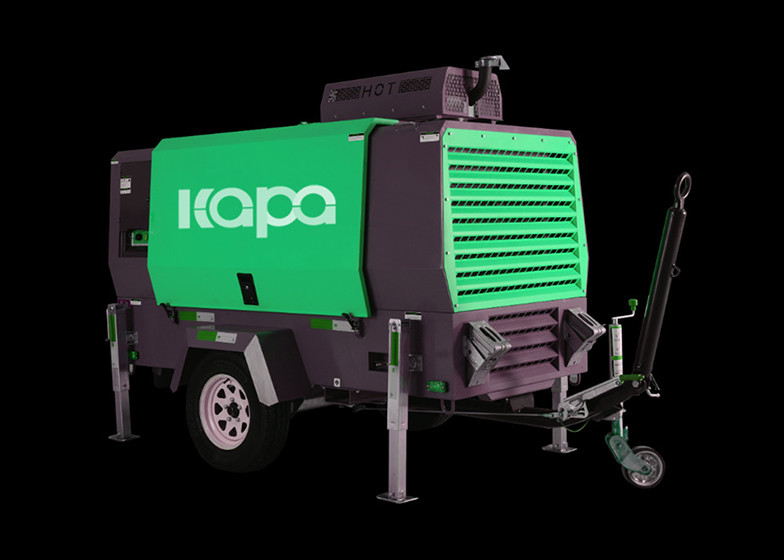

200KW 268Hp 36.75m3/Min Free Oil Compressor

200KW 268Hp 36.75m3/Min Free Oil Compressor

  • High Light

    36.75m3/Min Free Oil Compressor

    ,

    268Hp Free Oil Compressor

    ,

    36.75m3/Min High Capacity Compressor

  • Displacement
    36.75m³/min
  • Rated Power
    200kw /268hp
  • Rated Pressure
    0.8Mpa
  • Dimension
    3100*1850*2100(mm)
  • Outlet Size
    DN80
  • Net Weight
    3900kg
  • Noise Leval
    72±2 DB(A)
  • Drive Stype
    Direct Drive
  • Warranty
    2 Years
  • Application
    General Industry
  • Quantity OA Cooling Water (L)
    42
  • Lubrication Water (L)
    200
  • Place of Origin
    CHINA
  • Brand Name
    Kapa
  • Certification
    CE ISO
  • Model Number
    KB200-268HP
  • Minimum Order Quantity
    1
  • Price
    USD5000-10000 Per Unit
  • Packaging Details
    Wood box
  • Delivery Time
    10-15
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2000 units per month

200KW 268Hp 36.75m3/Min Free Oil Compressor

200KW / 268Hp 36.75m³ / min Energy Saving Oil Free Screw Air Compressor 3100*1850*2100

Main uses and guarantees:



Energy saving: energy saving more than 15% compared with dry oil-free compressor.
Environment protection: no using any lubricate oil to avoid environment pollution.
Reliability: absolutely guarantee oil-free.

Because the purified water takes part into the compressing process to seal, cool and lubricate, it increases efficiency. With the same motor power, comparing with dry oil-free air compress, there is 15% more air production of oil-free screw air compressor of water lubrication, it reduces the energy consumption greatly. The consumption material of oil-free screw air compressor is only water, air filter and water filter, the maintenance cost is very low.

100% oil-free compressed air, 100% purified compressed air, 100% no oil pollution risk.


In the process of food and drink industry, medical industry, packing industry, electronic manufacture, painting industry, powder coating industry and textile manufacturing, it must avoid any risk of oil pollution, otherwise it would cause serious consequences such as manufacture damages and stop, brand and credit losing. CMN oil-free screw air compressor takes water for lubrication, there is not any lubricate oil in the air end, and at the meantime, because the purified water clean the air, the compressor air is absolutely clear and not any pollution.



Guarantee: High precision, high wear resistance, low noise, smooth and steady, high strength







The technical advantage water lubricating oil-free screw air compressors


1.With the fifth generation of oil-free screw airend technology. The compressor airend and system adopt stainless alloy, thus the technological transcendence from the copper airend to the stainless steel airend is realized.


2.Integrated design is adopted for the whole machine. There are no complex pipelines and lines, and the fault points are less and more stable.


3.Less maintenance consumables (air filter, water filter), easy maintenance, no professional staff is required to operate it, and less maintenance costs.


4.There is absolutely no oil in compressor system, without any oil pollution risk, it gives guarantee of no oil in generated compressed air.


5.Volumetric efficiency is higher based no isothermal compression. More than 15% energy is averagely saved compared with dry type two stage compression oil-free screw air compressor, more than 25% energy is averagely saved compared with the dry type one stage compression, the running temperature is less than 50℃, and there is risk of being burned.


6.Wider pressure ranges:2-40Bar.


7.The full intelligent CNC precise machining technology and the force balance of the airend running can ensure lower noise, smaller vibration, and longer service life.


8.Averagely more than 10% air delivery is generated for the same power of water lubricating screw air compressors than the same power dry oil-free screw air compressor.



9.More simple and convenient operation, PLC intelligent control is adopted. Automatic fault detection, fault warning, maintenance reminder, fault reminder, automatic protection function. It can realize 24 hours unattended and remote-control function.


10.Copressed air is cleaner through cleaned by lubrication water, it can be directly used for breathing. The dew point of saturated compressed air is lower, and the water content of compressed air is lower by more than 25% than of an ordinary dry type oil-free screw air compressor.


11.The airend patent optimized design, large rotor, low rotary speed (within 3000r/min), without gearbox, direct connection drive, it has lower rotary speed and longer life compared with dry oil-free screw air compressor (10000r/min~20000r/min).


12.The function of automatic water exchange and automatic system cleaning can be realized, and the interior of the compressor is cleaner and sanitary.



200KW 268Hp 36.75m3/Min Free Oil Compressor 0

Specification



Model


Specification

KB200-268P

(M³/Min/Mpa) 36.75/0.8
Power Kw/ HP 200KW/268HP
Ambient Temperature ℃ 2℃-45℃
Cooling Mode Air Cooled
Discharge Temp ≤Ambient +15℃
Noise Level Db(A) 72±2
Driven Mode Direct Drive
Power (V/Ph/Hz) 380V/350Hz
Lubrication water (L) 200
Quantity OA cooling water (L) 42
Starting Mode VFS
Dimension (mm) 3100*1850*2100
Net Weight (kg) 3900
Out let Diameter (inch) DN80

Advantages of Kapa brand

Innovate technology to protect the environment
Kappa listens, understands and meets the needs of customers
Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kappa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.


Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us

Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.

FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
