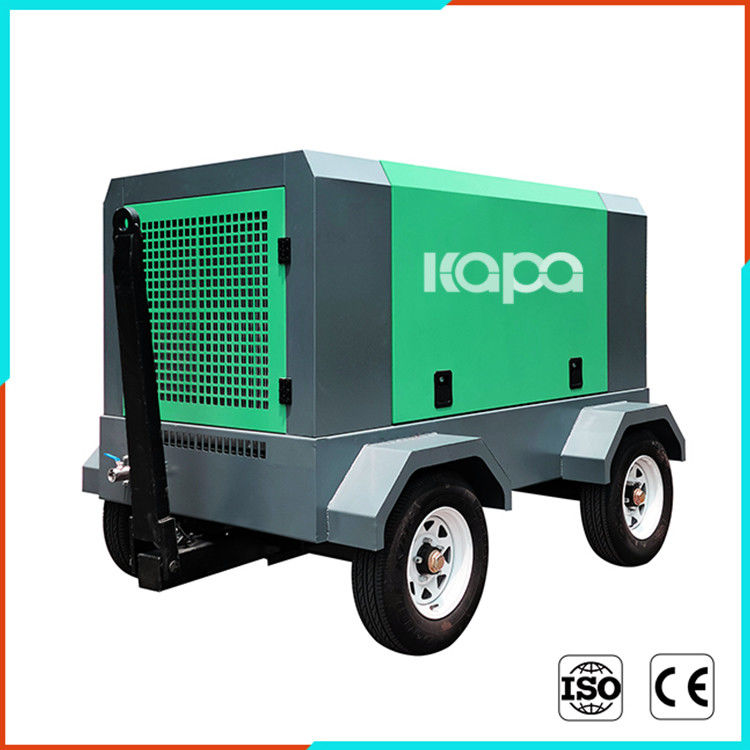

Low Noise 160kw 31.78m3/Min Portable Air Compressor Machine

Place of Origin CHINA
Brand Name Kapa
Certification CE ITS ASME WIT
Model Number KP160-0.8II
Minimum Order Quantity 1
Price USD 4100-4500 PER UNIT
Packaging Details Wood box
Delivery Time 10-15
Payment Terms L/C, T/T
Supply Ability 5000 SET PER MONTH
Product Details
Type Screw Air Compressor (M³/Min/Mpa) 31.78/0.8
Power Kw/HP 160KW/215HP Ambient Temperature℃ 2℃-45℃
Discharge Temp ≤Ambient +15℃ Noise Level 61.2
Drive Mode Direct Drive Power(V/PH/HZ) 380V/50HZ
Dimension(mm) 2980*1880*2160 Net Weight 3850KG
Out Let Diameter(inch) DN80 Condition New
High Light

31.78m3/Min Portable Air Compressor Machine

,

160kw Portable Air Compressor Machine

,

160kw Two Stage Portable Air Compressor

Leave a Message
Product Description

160kw Two Stage Screw Air Compressor 31.78 m³ / min 2980*1880*2160


Description



Save energy 10-15% compare with one stage;
The compression efficiency is 12-18% higher than one stage;
Vibration is 15-30% lower than one stage.



Air intake status ≤Ambient temperature intake pressure 1.013bar(A) Voltage(V)
Frequency(Hz)
380V50Hz
Start-ups Y-△ Noise dB(A) 72±5dB
Oil Content 1~3ppm Outlet Air Temperature ambient temperature+8℃



  1. Two stage energy saving screw air compressor air end:

Ten years screw compressor air end experience
Produces 100,000pcs air end yearly
Developed two stage compressor energy saving air end

2. Energy saving special motor:
4-stage motor drive
With Low rotating speed, low noise
Small starting current
Large moment output
More smoothly running

3. Smart control system:
Adopt high efficiency double control screen design
(Touch screen+mechanical button)
Four control mode:
Automatic control
Manual control
Multi-machine combination
Remote control

⊙ Schematics



1. Air Filter 9. Oil Temperature Control Valve
2. Air-in Easing Value 10. Oil Filter
3. Principal Screw Machine 11. One-way Shut-off Valve
4. Oil Air Separator 12. Pressure Gage
5. Oil Air Separating Filter Core 13. Safety Valve
6. Minimum Pressure Valve 14. Vent Valve
7. Radiator with Aluminum Alloy Fans 15. Compressed Air Dry Separator
8. Return Check Valve 16. Motor





Low Noise 160kw 31.78m3/Min Portable Air Compressor Machine 0



Specification



Model Specification KP160-0.8II
Displacement/Pressure (M³/Min/Mpa) 31.78/0.8
Power Kw/ HP 160KW/215HP
Ambient Temperature ℃ 2℃-45℃
Cooling Mode Air-Cooling
Discharge Temp ≤Ambint+15℃
Lub Oil Capacity Liter 42.3L
Noise Level Db(A) 61.2
Driven Mode Direct Drive
Power V/Ph/Hz 380V/50Hz
Starting Mode power frequency
Dimension mm 2980*1880*2160
Net Weight kg 3850
Out let Diameter inch DN80





Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us

Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
