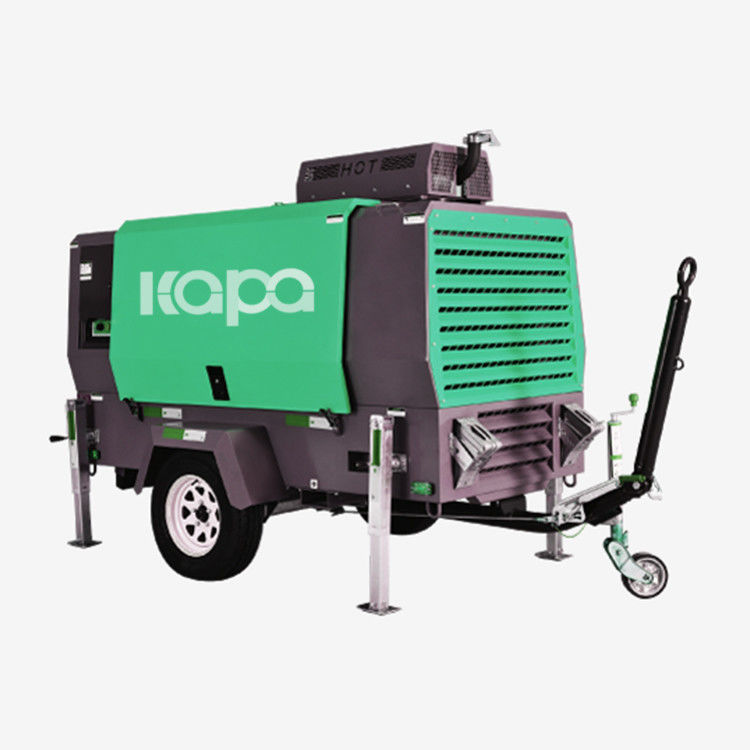

1.3Mpa Portable Screw Air Compressor
Product Details
| Type | Diesel Engine Screw Air Compressor | Dimension | 3380*1650*2500mm |
|---|---|---|---|
| Weight | 3350KG | Lubrication Style | Oil Less |
| Warranty | 2 Year | Mute | No |
| Place Of Origin | China | ||
| High Light | 1.3Mpa Portable Screw Air Compressor,24V Portable Screw Air Compressor,1.3Mpa Portable Screw Compressor |
||
Product Description
Diesel Engine Driven Portable Screw Air Compressor With Inlet Air Pre Filter
1.On sale 5% off
2.Delivery in time
3.oversea service are available
Feature and Advantages of KAPA portable screw air compressor
- High Efficiency,minimal energy consuption,high reliability,minimal downtime operation
- Vibration isolation mount technology ensure smooth and quiet operation
- Multi-auto alarm associate with high tempreture shut down protection system
- Easy to Maintain with off the shelf parts
- Easy to operate with detail instructionmanual
-
ON/OFF and 0~100% stepless capacity regulation and motor automatic start/stop function for saving energy.
-
Reasonable box and airflow design,reducing the influence to capacity caused by air inlet pressure and temperature to the least.
-
Equipped with inlet air pre-filter,effectively prolong the Ilifetime of consumables and reduce lots of maintenance.
About KAPA portable screw Air Compressor
KAPA Series Portable Screw Air Compressor are designed for a variety of segments like abrasive sandblasting, construction and mining
where they are used to drive heavy pneumatic tools like jack hammer, pavement breaker, chipping hammer, pneumatic pumps etc.
·Ideal for tropical temperatures
·Air filtration system with vacuum indication for dust environments
·Compressor oil and engine coolant coolers to optimize performance and extend engine life
·Efficient compressor oil filter
·Fuel filter with water separator
·Easy to remove, translucent PE fuel tank
Specifications of air compressor :
| model | Portable Screw Air Compressor |
| Air delivery( m3/min) | 15 |
| Working pressure( Mpa) | 1.3 |
| Weight(kg) | 3350 |
| Size(mm) | 3380×1650×2500 |
| Tire Size*Qty | 6.50-16×4 |
| manufacturer | styer |
| model | WD415.23 |
| type | Screw type |
| Method of air suction | Pressurize med-cool |
| diameter *stroke * number of cylinders | 126×130×4 |
| Exhauste volume of piston(L) | 6.484 |
| rated speed(r/min) | 1800 |
| Unloading speed(r/min) | 1400 |
| rated power kW(HP) | 166(230) |
| diesel cubage (L) | 19 |
| fuel cubage(L) | 250 |
| electrical system voltage (v) | 24 |
| No of compression stage | 1 |
| Compressor oil capacity(L) | 48 |
| air supply valve |
G2*1 G3/4*1 |
Features of screw type air compressor
1, Well-known screw compressor end
2, Interactive control system
3, Imported filtration system
4, Imported air capacity control system
Application for screw type air compressor
Screw air compressors are widely used in highways, railways, mining, water conservancy,shipbuilding, urban construction, energy, military, and other industries.
Advantages
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
4.Efficient filtering and seperating system.
5.Large oilfter cooler ensures the machines in optimum operation temperature when the ambient temperature is high.
6.Efficient air-cooled enclosed motor
7.Super low noise.
