Rotary type 7 Bar 430 CFM Portable Screw Air Compressor
Product Details
| Type | Diesel Engine Screw Air Compressor | Condition | New |
|---|---|---|---|
| Con Dition | New Machine | Lubrication Style | Oil Lubricated |
| Transmission Way | Direct Driven | Warranty | One Year Of The Compressor, 3 Years Of The Air End |
| High Light | 430 CFM Portable Screw Air Compressor,7 Bar Portable Screw Air Compressor,430 CFM Portable Rotary Screw Air Compressor |
||
Product Description

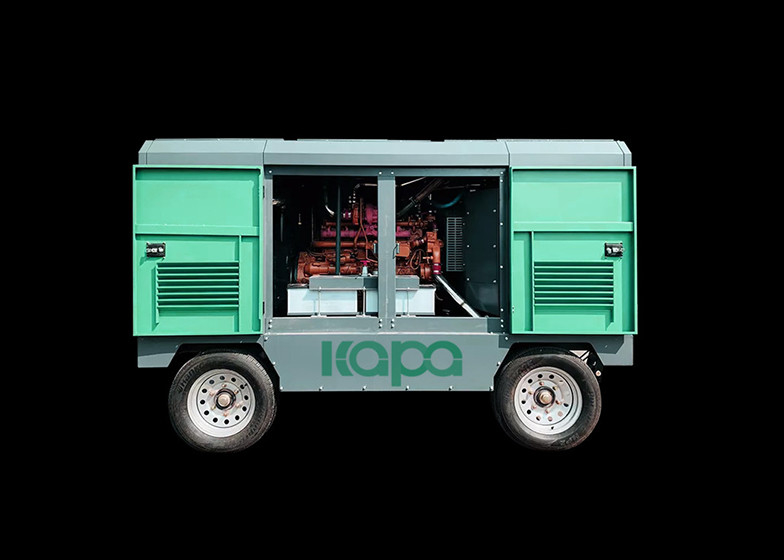

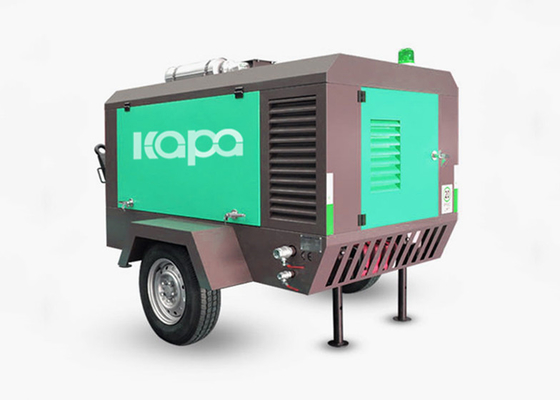

7 Bar 110 Kw 430 cfm Portable Screw Air Compressor
Kapa portable diesel screw air compressor.
Description :
1. Vibration isolation mount technology ensure smooth and quiet operation
2. Multi-auto alarm associate high temperature shut down protection system
3. Easy to maintain with off the shelf parts
4. Easy to operate with detail instruction manual
5. Top grade diesel engines are used to ensure minimal emission to environment
Details:
1. Diesel powered portable screw air compressor: power:37-300kw, air delivery: 26m3/min, exhaust pressure: 2.2MPa, 6 categories
2. Air end: large diameter rotor, air end connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engines’, more longer lifespan
3. Diesel engine: select the diesel engine of COMMINS and YUCHAI brand, satisfy the emission requirement of Europe, low oil consumption, after sale service system all over the china.
Datas:
| Model No. | Diesel powered portable screw air compressor |
| Capacity (m3/min/ CFM) | 12/424 |
| pressure (bar/psig) | 7/102 |
| Fluid capacity (L/gallon) | 35/9.5 |
| Compression stage | single |
| Engine model No. | 4BTA3.9-C125 |
| Rated Power(KW/HP) | 93/125 |
| Dimension(mm) | 3900*1980*1900 |
| Weighht(kg) | 2050 |
our advantages:
1. KAPA is the only manufacturer in china which is able to mass produce the motor powered and diesel powered portable screw air compressor, breaking the monopoly of foreign brand in the screw air compressor.
2. Good adaptability: automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor.
3. Operation parameter is straightforward, with multiple warning and shut down protection device.
