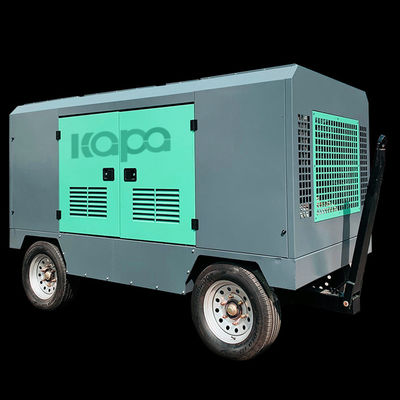

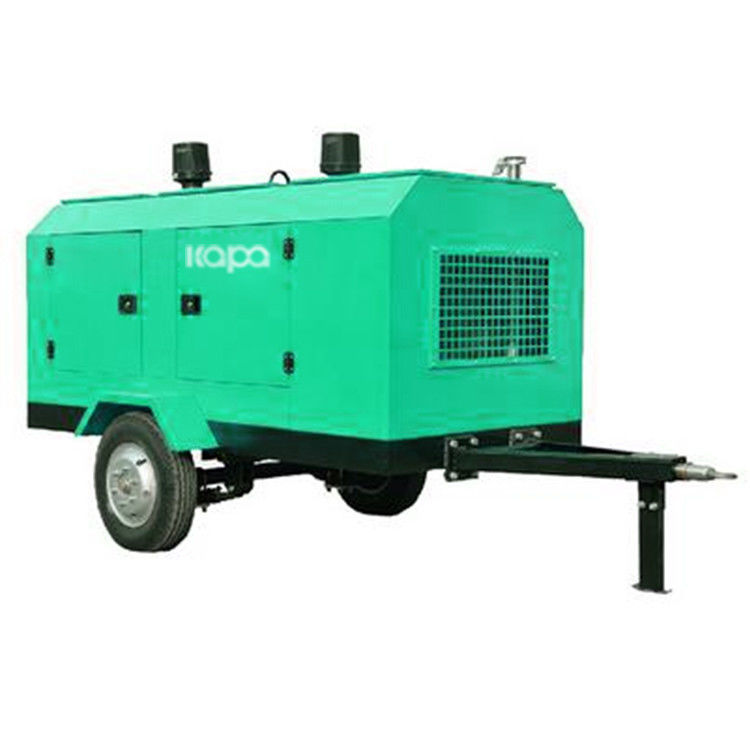

12m3/Min 145Psi Diesel Driven Air Compressor With Drill Rig

Place of Origin China
Brand Name Kapa
Certification CE ISO9001
Model Number Portable Screw Air Compressor
Minimum Order Quantity 1
Price USD 4100-36000
Packaging Details WOOD BOX
Delivery Time 10-15 work days
Payment Terms L/C, T/T
Supply Ability 5000PER MONTH
Product Details
Type Diesel Engine Screw Air Compressor Condition New
Mute NO Configuration Portable Type
Diesel Engine Cummins Warranty One Year Of The Compressor, 3 Years Of The Air End
High Light

145Psi Diesel Driven Air Compressor


12m3/Min Diesel Driven Air Compressor


145Psi Screw Air Compressor

Leave a Message
Product Description

12 m3/Min Diesel Driven Air Compressor Screw Air Compressor Work With Small Drill Rig


Kapa portable diesel rotary screw air compressor.




Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy, military and other industries.


We are the leader in diesel portable screw compressor, and is the only one to produce two stage compressed high-pressure screw air end enterprise.

Our diesel screw air compressor is highly efficient and reliable,power range of 37 to 300kW, capacity up tp 30m3/min, working pressure up to 2.2 MPa.





Air Filteration System: High efficient air inlet filter to prevent motor and airend rotors damaged by dirt particles

High Efficient Airend:Large rotors design and large bearings are used to ensure low PRM.This ensure low operating sound,minimal vibration and extended operating life.

Modulation Control:Base on air demade, the modulation valve will control the inlet air capacity and diesel enginer RPM to minimize the fuel consumption.It features maximum energy saving.

Control Panel:.Easy to operate and read;High water temperatue alarm,high pressure alarm, high discharge air temperature alarm and high RPM alarm are all part of it's features;It has mainten ance service alarm and designed with highly readable digital display at night time.

Diesel Engine:sing well known diesel engine like Cummins,Steyr,Caterpillar and Yuchai.This ensure superior performance and reliablity of the compressor.

Cooler:Large cooler and fan design to ensure maximum cooling especially for the extreme operating environment.



l No.

diesel screw compressor

Capacity 12m³/min (424cfm)
Working pressure 10Bar/145Psi
The head model no. SKY148LM
Air compressor oil capacity 35L
Compression Stage: Single
Noise level db (a) 80±3
Outlet connection size*Qty G1 1/2×1&G3/4×1
Weight 2380 KGS
Dimension (mm) 3970*1940*2350
Engine Model No: YC6B150Z-K20
Cylinder bore stroke number of cylinders 108*125*6
Delivery Capacity 6.871 L
Rated RPM 1800r/min
Unload RPM 1400r/min
Rated Power 110KW/150HP
Diesel engine oil Capacity 15 L
Fuel Tank Capacity 130 L
Electrical System Voltage 24V
