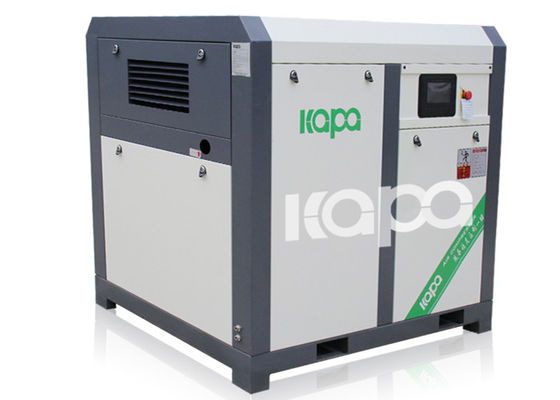

11KW 15 HP Oil-Less Screw Air Compressor , 1.6m3/Min Air Compressor

Place of Origin CHINA
Brand Name Kapa
Certification CE ISO14001 SGS
Model Number KF11-15P
Minimum Order Quantity 1
Price Per Unit
Packaging Details Ply-Wood box
Delivery Time 20-25 days
Payment Terms L/C, T/T
Supply Ability 2000 units per month
Product Details
Displacement 1.6m³/min Rated Power 11kw /10hp
Rated Pressure 0.8Mpa Dimension 1156*845*1250(mm)
Outlet Size Rp 3/4 Net Weight 460kg
Noise Leval 72±2 DB(A) Drive Stype Direct Drive
Warranty 2 Years For Main Parts, 1 Year For Whole Machine Application General Industry
High Light

1.6m3/min 15 HP Screw Air Compressor

,

11KW 15 HP Screw Air Compressor

,

1.6m3/min 15 HP Air Compressor

You can tick the products you need and communicate with us in the message board.
Model KF-10HP KF-15HP KF-20HP KF-30HP KF-50HP KF-60HP KF-75HP KF-100HP KF-150HP
Motor Power 7.5kw 11kw 15kw 22kw 37kw 45kw 55kw 75kw 110kw
Capacity/Pressure (m3/min/MPa) 1.0/0.8 1.6/0.8 2.5/0.8 3.6/0.8 6.2/0.8 7.3/0.8 10/0.8 13/0.8 20/0.8
Length (mm) 1000 1100 1260 1520 1760 1900 1900 1900 2200
Width(mm) 750 845 900 1060 1160 1250 1250 1250 1600
Height(mm) 1100 1260 1360 1450 1550 1340 1340 1340 1700
Weight(Kg) 400 460 620 840 1010 930 970 1020 2330
Noise dB(A) 72±2 72±2 72±2 72±2 72±2 76±2 76±2 76±2 76±2
Leave a Message
Model KF-10HP KF-15HP KF-20HP KF-30HP KF-50HP KF-60HP KF-75HP KF-100HP KF-150HP
Product Description

11KW / 15Hp 1.6m³ / min 56cfm Oil Free Screw Air Compressor 1100*845*1260


Application


Pharmaceutical industry
In pharmaceutical factories, compressed air is mainly used in filling machines for liquid preparations, granulators, pulpers, filling machines, packaging machines, printers, and extraction tanks for solid preparations. In addition, compressed air can also be used for testing gas, material transportation, drying, purging, pneumatic instruments, automatic control gas, etc. Because the quality of compressed air in direct contact with pharmaceutical production directly affects the quality of products, oil-free compressor air is essential. General compressed air system needs to be verified to prove that the system meets the production requirements and passes GMP certification inspection.
Food and beverage industry
   In the food and beverage industry, it is necessary to use compressed air to control the valves and braking devices in the automatic production line of filling, packaging, and bottling, while powder
Completely pure compressed air is needed for conveying, blowing, ventilating, fermenting, cooling, spraying, and so on. Once compressed air contains oil or other impurities, it will cause pollution.
In the food and beverage industry, any small pollution may bring hidden dangers to consumers. According to the requirements, in the food and beverage industry
  The grade of medium compressed air must reach Grade 2 standard, and the dew point of compressed air is below-40℃.
With the recent increase in food safety issues, food safety factors have increasingly affected consumers' consumption behavior, and oil-free air ensures that the end products have no air
Compressing pollutants from production helps food and beverage manufacturers regain and maintain consumers' trust in food safety.



11KW 15 HP Oil-Less Screw Air Compressor , 1.6m3/Min  Air Compressor 0

Specification



Model


Specification

KF11-15P

(M³/Min/Mpa) 1.6/0.8
Power Kw/ HP 11KW/15HP
Ambient Temperature ℃ 2℃-45℃
Cooling Mode Air Cooled
Discharge Temp ≤Ambient +15℃
Noise Level Db(A) 72±2
Driven Mode Direct Drive
Power (V/Ph/Hz) 380V/3/50Hz
Starting Mode VFS
Dimension (mm) 1156*845*1250
Net Weight (kg) 460
Out let Diameter (inch) RP3/4

11KW 15 HP Oil-Less Screw Air Compressor , 1.6m3/Min  Air Compressor 1



Advantages of Kapa brand

Innovate technology to protect the environment
Kappa listens, understands, and meets the needs of customers
Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kappa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.


Advantages:
1. High-quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 25-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us

The longer service life of the master machine
The rotor uses an asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such a way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors are equipped with an effective and fully sealed air-cooling electromotor.

FAQ

Q1: Are you a factory or trade company?
A1: We are a professional manufacturer of screw air compressors.
Q2: What is the exact address of your factory?
A2: Our factory is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your requirements.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can deliver the goods within 25-30 days. Other electricity or other colors we will deliver within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
