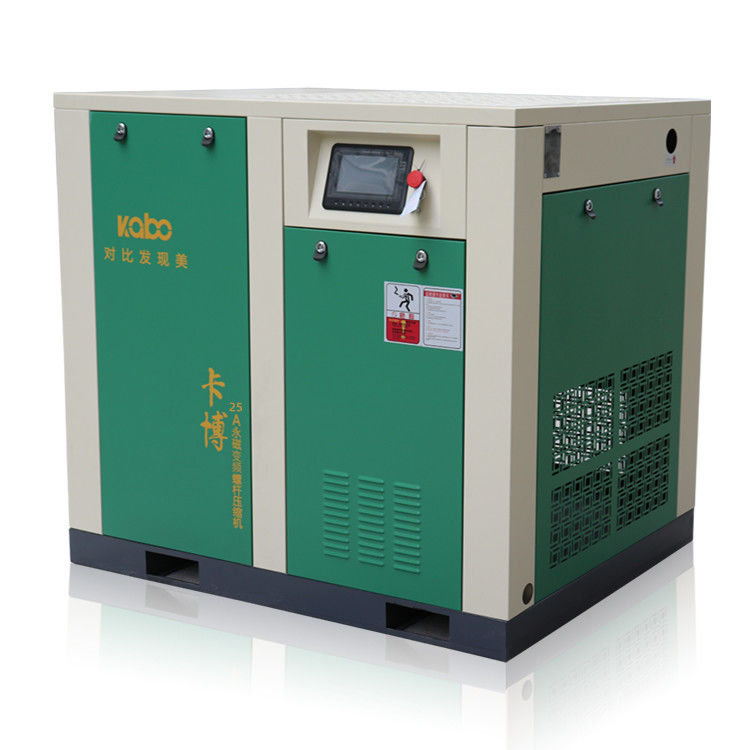

7.5KW / 10HP 0.48m³ / min Intelligent High Efficiency Industrial Air Compressor1550*700*1580
Description
Use Germany KAPP machine and German manufacturing technique to process the compression element, the components manufactured to the highest standards and precision aligned rllrbearings ensure long service life with maximum relibility.
Heavy-duty CUMMINS diesel engine for extended operation.
Excellent components, for example, Siemens electronics for high performance.
Automatic operation system helps the operator to master the operating skills quickly, unattended operation and remote control are available
Conform to CE, ISO9001 and energy saving crication, etc.
Applications: rmining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry, quarry, sandblasting, pipeline pressure test, public works, etc.
Free air delivery in accordance with lso 1217:2009,annex c:Absolute intake pressure 1 bar[a],colling and air intake temperature 20℃.
Advantages
Large exhaust
Low oil content in exhaust gas
The whole machine adopts two kinds of control mode: electric control and air control. The whole computer controls, automatic conversion; Password protection, no special person to manage;
Adopt direct drive, make compressor main engine rotate speed lower, efficiency is higher, failure rate is lowest, need not replace drive part inside 3 years, increase working efficiency 5% than belt drive.
|
Model
Specification |
kp7.5KW-1.6/YC |
| (M³/Min/Mpa) | 0.48/1.6 |
| Power Kw/ HP | 7.5KW/10HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air Cooled |
| Discharge Temp | ≤Ambient +15℃ |
| Noise Level Db(A) | 70±2 |
| Driven Mode | Direct Drive |
| Power (V/Ph/Hz) | 380V/3/50Hz |
| Starting Mode | VFS |
| Dimension (mm) | 2180*1430*1720 |
| Net Weight (kg) | 1580 |
| Out let Diameter (inch) | RP2 |
⊙ Schematics
| 1. Air Filter | 9. Oil Temperature Control Valve |
| 2. Air-in Easing Value | 10. Oil Filter |
| 3. Principal Screw Machine | 11. One-way Shut-off Valve |
| 4. Oil Air Separator | 12. Pressure Gage |
| 5. Oil Air Separating Filter Core | 13. Safety Valve |
| 6. Minimum Pressure Valve | 14. Vent Valve |
| 7. Radiator with Aluminum Alloy Fans | 15. Compressed Air Dry Separator |
| 8. Return Check Valve | 16. Motor |
why choose us
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
