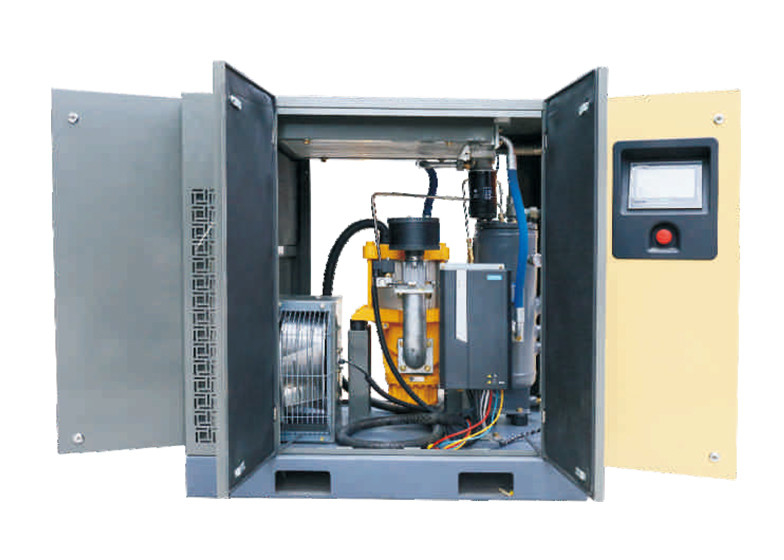

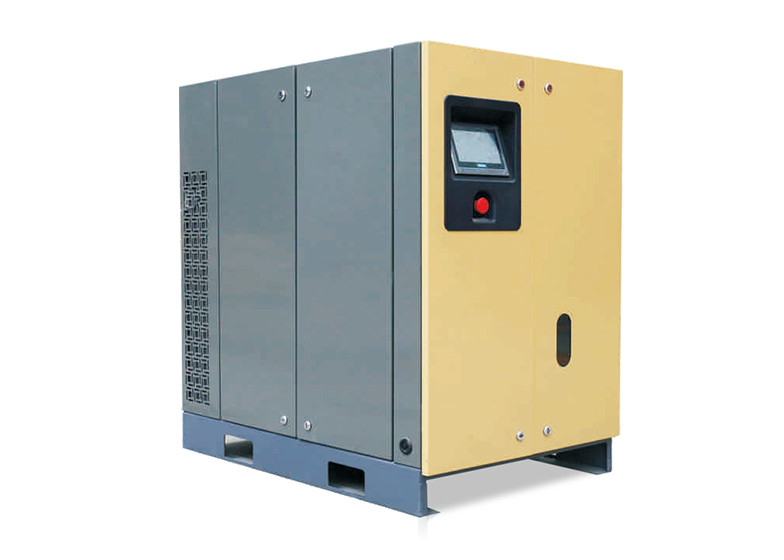

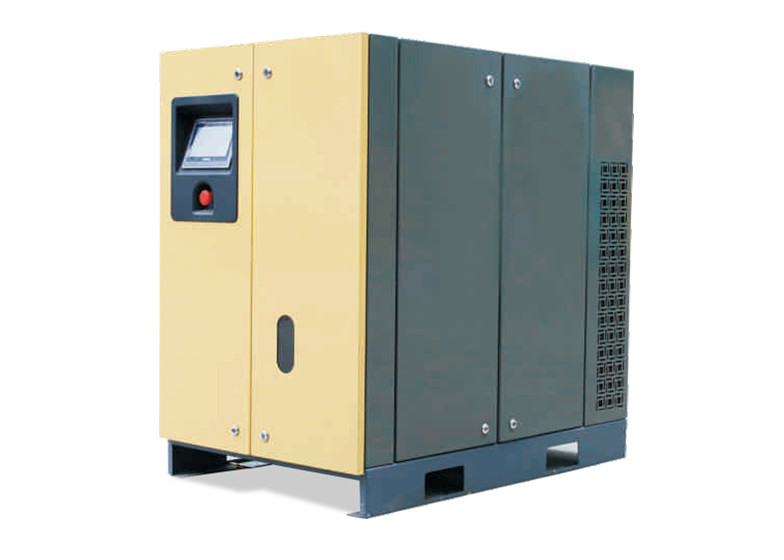

15KW 20HP Variable frequency screw compressor 1.8m3/min 1138*850*1035MM
Variable frequency screw compressor Product description:
On-demand gas supply: Traditional fixed-frequency compressors match demand through a "load-unload" cycle. When unloading, the motor still consumes a lot of electricity (about 20-40% of rated power) when idling. The variable-frequency compressor directly reduces the motor speed,
reduces the gas output, and the motor input power decreases almost in the same proportion (power and speed are approximately in a cubic relationship).
Eliminate unloading losses: Completely avoid the energy waste of fixed-frequency machines in the unloading state.
Reduce pressure difference losses: Usually it can operate in a smaller range closer to the target pressure (narrower pressure bandwidth), reducing the energy consumption caused by the system pressure difference.
Significant power saving effect: Under conditions with large load fluctuations (which is the norm in most factories), the comprehensive power saving rate can usually reach 20%-40%, or even higher, and the investment payback period is short.
Variable frequency screw compressor technical parameters:
| Model Specification | CAS15-0.8 |
| Displacement/Pressure (M³/Min/Mpa) | 15/0.8 |
| Power Kw/ HP | 15KW/20HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air-Cooling |
| Discharge Temp | ≤Ambint+15℃ |
| Noise Level Db(A) | 62 |
| Driven Mode | Direct Drive |
| Power V/Ph/Hz | 380V/50/60Hz |
| Starting Mode | power frequency |
| Dimension mm | 1138*850*1035mm |
| Out let Diameter inch | RP3/4 |
Screw Compressor Application:
Mold industry,lightand he avy industry,mining,hydropower,seaport,engineeringconstruction,oil and gasfield,railway,pharmaceutical industry,transportation,automobile repair,electronicindustry,electric power industry,machinery industry,petrochemical industry,food industry,printing industry
About Kapa:
screw air compressor manufacturers in china
main products include : variable frequency drive air compressor,industrial screw air compressor,laser cutting four-in-one air compressors, mobile integrated air compressors, oil-free air compressors, diesel mobile air compressors, large industrial air compressors, air compressor accessories, etc.
why choose us ?
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Our products are sold all over the world, you can rest assured.
