Variable Frequency 1.06m3/Min Screw Air Compressor 7.5kw 10hp industrial compressors
一:Screw Air Compressor DISCRIPTION:
1:application
Screw machine is applicable to automobile repair, machinery, electronics, plastics, mininghydropower, engineering, chemical industry, drilling, blow molding machine, punch printing,food, transportation and other equipment, powerful and applicable to many fields.

2: Parameter:
| Displacement/Pressure (M³/Min/Mpa) |
1.06/0.8 |
| Power Kw/ HP |
7.5KW/10HP |
| Ambient Temperature ℃ |
2℃-45℃ |
| Cooling Mode |
Air-Cooling |
| Discharge Temp |
≤Ambint+15℃ |
| Noise Level Db(A) |
70±2 |
| Driven Mode |
Direct Drive |
| Power V/Ph/Hz |
380V/50Hz |
| Starting Mode |
Variable Freqency |
| Dimension mm |
1008*700*885 |
| Net Weight kg |
610 |
| Out let Diameter inch |
RP1/2 |
二:Screw Air Compressor Advantage:
- Low noise : The exhaust is continuous and stable, without knocking sound of moving parts and air blastsound
- Power saving40% : Screw air compressor with exhaust pressure of 0.8-1.6Bar can save 40% of the power, so youcan recover the cost within one year
- Pressure stability : Through the controller or the PlD regulator inside the frequency converter, it can be startedsmoothly, and can quickly adjust the response to the situation where the gas consumption fluctuates greatly.
- Reliable and durable : Simple structure, few moving parts, small bearing force, stable operation, and wear resistanceof movingand stationary discs without contact.

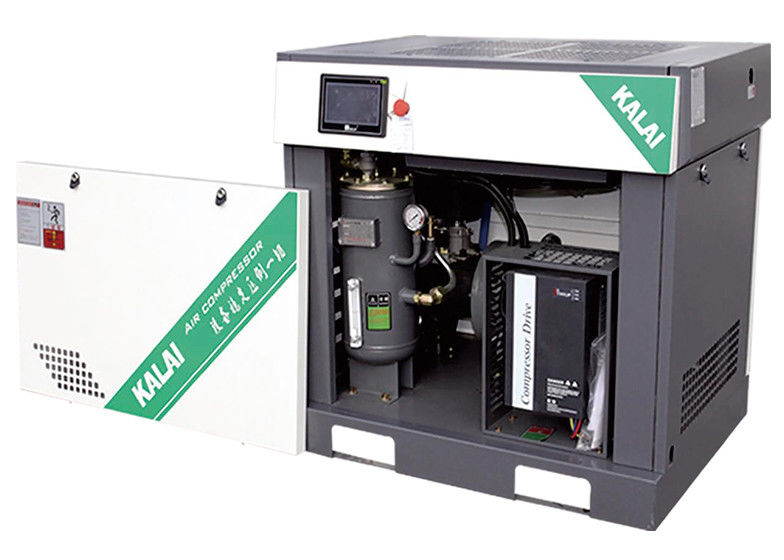

三: Photos of Screw Air Compressor :


四:kapa compressor Serive:
- The delivery time: 25-30 days after receiving the advance payment.
- The above trade term is FOB Shenzhen
- The warranty period is 12 months from the date when the Air compressor set has been arrived the destination site.
- Payment item: pay 30% as advance payment by T/T, 70% before delivery.
