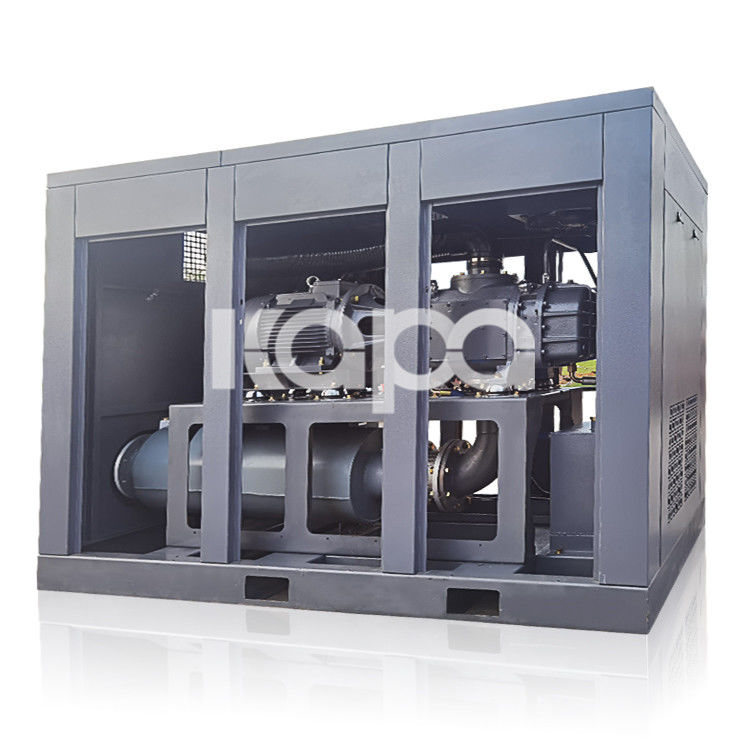

22KW 30HP 6.5m3/min 1.5 Bar Low Pressure Oil Free Blower

22KW 30HP 6.5m3/min 1.5 Bar Low Pressure Oil Free Blower

  • High Light

    1.5 Bar Oil Free Blower

    ,

    6.5m3/min Oil Free Blower

    ,

    30HP Oil Free Air Blower

  • Drive Tape
    Direct
  • Tape
    Screw Oil-free Blower
  • Condition
    New
  • Certification
    CE, ISO14001, SGS
  • Cooling Mode
    Air Cooling
  • Dimension (mm)
    1520*1060*1450
  • Ambient Tem
    -5℃-42℃
  • Warranty
    1 Year
  • Place of Origin
    China
  • Brand Name
    Kapa
  • Certification
    CE, ISO14001, SGS
  • Model Number
    KG-30HP
  • Minimum Order Quantity
    1
  • Price
    Negotiation
  • Packaging Details
    ply-wood
  • Delivery Time
    25-30 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    5000 pcs /month

22KW 30HP 6.5m3/min 1.5 Bar Low Pressure Oil Free Blower

22KW 30HP 6.5m3/min 1.5 bar low pressure Oil-free blower





Kapa Oil-free blower is widely applicable Melt blowing, Medical treatment,Food, Food sewage treatment,Pharmaceutical fermentation.

Mute and high-effect

Low pressure



Current Models and Specifications for selection

Model KG-15HP KG-20HP KG-30HP KG-50HP KG-60HP
Motor Power 11kw 15kw 22kw 37kw 45kw
Capacity/Pressure (m3/min/ba) 3/1.5 4.6/1.5 6.3/1.5 12.2//1.5 17.1/1.5
Length (mm) 1100 1260 1520 1760 1900
Width(mm) 845 900 1060 1160 1250
Height(mm) 1260 1360 1450 1550 1340
Noise dB(A) 72±2 72±2 72±2 72±2 76±2
Model KG-75HP KG-100HP KG-120HP
Motor Power 55kw 75kw 90kw
Capacity/Pressure (m3/min/ba) 22.6/1.5 34.1/1.5 43.8/1.5
Length (mm) 1900 1900 1900
Width(mm) 1250 1250 1250
Height(mm) 1340 1340 1340
Noise dB(A) 76±2 76±2 76±2


Advantages of Kapa brand



Innovate technology to protect the environment

Kapa listens, understands and meets the needs of customers

Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kapa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.



Advantages:

1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 25-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)



Why choose us



Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.



FAQ



Q1: Why customers choose Kapa?

A: KAPA has 20 years of experiences specialized in screw air compressor industry.

R & D team and engineers originally from Sullair, with SGS and ISO certified management and control system.

We warmly welcome your small trial order for quality and market test.



Q2: Are you a direct manufacturer or just a trading company?

A: We are a professional manufacturer with big modern workshops situated in Pingxiang Lianhua Industrial Park,

Jiangxi Province, China. Both OEM & ODM service are available.



Q3: How about your delivery time?

A: Generally 25-30 days. While if ordering special designs or customized models, shipping time will be somewhat longer.

Exact time please contact sales in advance to confirm then.



Q4: HOW LONG IS YOUR AIR COMPRESSOR WARRANTY?

A: One Year for the whole machine and two years for screw air-end.



Q5: HOW ABOUT YOUR AFTER-SALES SERVICE?

A: We provide customers with installation and commissioning online instructions.well-trained engineer

will troubleshoot within 24-48 hours through online videos or calls.
