1.71m3/Min 11KW  15HP direct drive Screw Air Compressor

1.71m3/Min 11KW 15HP direct drive Screw Air Compressor

  • High Light

    Rp3/4 Outlet Screw Drive Compressor

    ,

    1.71m3/Min Screw Drive Compressor

    ,

    1.71m3/Min Screw Air Compressor

  • Capacity/Pressure (m3/min/MPa)
    1.71/0.8
  • Voltage
    380v/50hz (or 220V/440V 60Hz )
  • Type
    Screw Air Compressor
  • Dimension(l*w*h)mm
    1080*750*980
  • Outlet Size Inch
    Rp3/4
  • Weight
    300kg
  • Noise
    60-70±2dB(A)
  • Place of Origin
    china
  • Brand Name
    kapa
  • Certification
    CE, ISO1400,SGS
  • Model Number
    KB-15HP
  • Minimum Order Quantity
    1
  • Price
    1341$/set
  • Packaging Details
    Ply-wood case
  • Delivery Time
    25-30 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    2000 sets/month

1.71m3/Min 11KW 15HP direct drive Screw Air Compressor

KB-15HP Direct drive Screw air compressor



DISCRIPTION:



1 Parameter:



Displacement/Pressure (M³/Min/Mpa) 1.71/0.8
Power Kw/ HP 11KW/15HP
Ambient Temperature ℃ 2℃-45℃
Cooling Mode Air-Cooling
Discharge Temp ≤Ambint+15℃
Lub Oil Capacity Liter (L)

16

Noise Level Db(A)

60-70±2

Driven Mode Direct Drive
Power V/Ph/Hz

380V/415V 50Hz (or 220V/440V 60Hz )

Starting Mode Industrial Freqency
Dimension mm 1080*750*980
Net Weight kg 300
Out let Diameter inch RP3/4



2 Advantage:



  1. Direct drive coaxial integrated design.
  2. Dust proof and sound insulation cotton, 70 dB
  3. Novel appearance design
  4. Support a variety of models
  5. Highly integrated and reliable

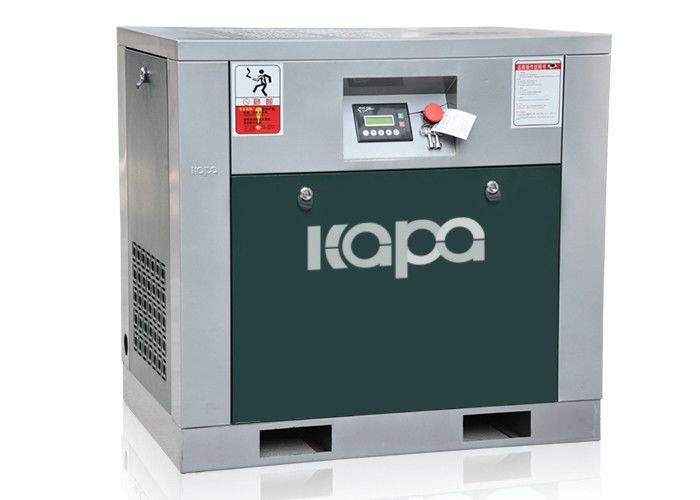

3 Photos of air compressor :



1.71m3/Min 11KW  15HP direct drive Screw Air Compressor 01.71m3/Min 11KW  15HP direct drive Screw Air Compressor 1





4 Serive:





  • The delivery time: 25-30 days after receiving the advance payment.
  • The above trade term is FOB Shenzhen
  • The warranty period is 12 months from the date when the Air compressor set has been arrived the destination site.
  • Payment item: pay 30% as advance payment by T/T, 70% before delivery.
