1.06m3/Min Screw Air Compressor With Rp1/2 Outlet

1.06m3/Min Screw Air Compressor With Rp1/2 Outlet

Products - Screw Air Compressor
  • Highlight

    1.06m3/Min Screw Air Compressor

    ,

    Rp1/2 Outlet Screw Air Compressor

    ,

    1.06m3/Min Screw Type Compressor

  • Exhaust Volume
    1.06m³/min
  • Voltage
    380v/50hz
  • Type
    Screw
  • Pressure
    0.8mpa
  • Dimension(l*w*h)mm
    900*650*870
  • Outlet Size
    Rp1/2
  • Weight
    191kg
  • Noise
    68dB(A)
  • Place of Origin
    CHINA
  • Brand Name
    KAPA
  • Certification
    CE，ISO,SGS
  • Model Number
    KB7.5-10P
  • Minimum Order Quantity
    1
  • Price
    900$/set
  • Packaging Details
    Ply-wooden case
  • Delivery Time
    25-30 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    2000 sets /month

1.06m3/Min Screw Air Compressor With Rp1/2 Outlet

  • 1.06m3/Min Screw Air Compressor With Rp1/2 Outlet
  • 1.06m3/Min Screw Air Compressor With Rp1/2 Outlet
  • 1.06m3/Min Screw Air Compressor With Rp1/2 Outlet
  • 1.06m3/Min Screw Air Compressor With Rp1/2 Outlet
  • 1.06m3/Min Screw Air Compressor With Rp1/2 Outlet
Get Price Contact Now

KB7.5-10P Direct drive coaxial integrated design kapa power frequency air compressor



DISCRIPTION:



1 Parameter:



Displacement/Pressure (M³/Min/Mpa) 1.06/0.8
Power Kw/ HP 7.5KW/10HP
Ambient Temperature ℃ 2℃-45℃
Cooling Mode Air-Cooling
Discharge Temp ≤Ambint+15℃
Lub Oil Capacity Liter (L) 5
Noise Level Db(A) 70±2
Driven Mode Direct Drive
Power V/Ph/Hz 380V/50Hz
Starting Mode Variable Freqency
Dimension mm 900*650*870
Net Weight kg 191
Out let Diameter inch RP1/2



2 Advantage:



  1. Direct drive coaxial integrated design.
  2. Dust proof and sound insulation cotton, 70 dB
  3. Novel appearance design
  4. Support a variety of models
  5. Highly integrated and reliable

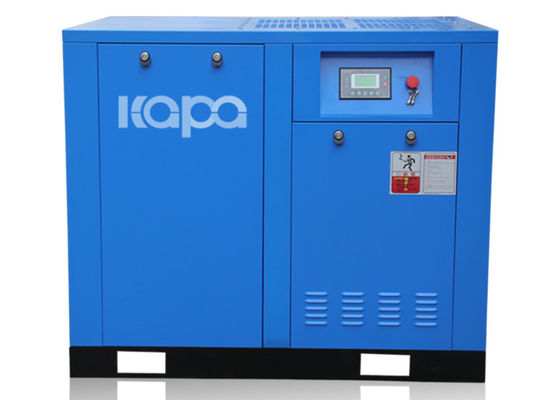

3 Photos of air compressor :



1.06m3/Min Screw Air Compressor With Rp1/2 Outlet 01.06m3/Min Screw Air Compressor With Rp1/2 Outlet 1





4 Serive:





  • The delivery time: 25-30 days after receiving the advance payment.
  • The above trade term is FOB Shenzhen
  • The warranty period is 12 months from the date when the Air compressor set has been arrived the destination site.
  • Payment item: pay 30% as advance payment by T/T, 70% before delivery.
