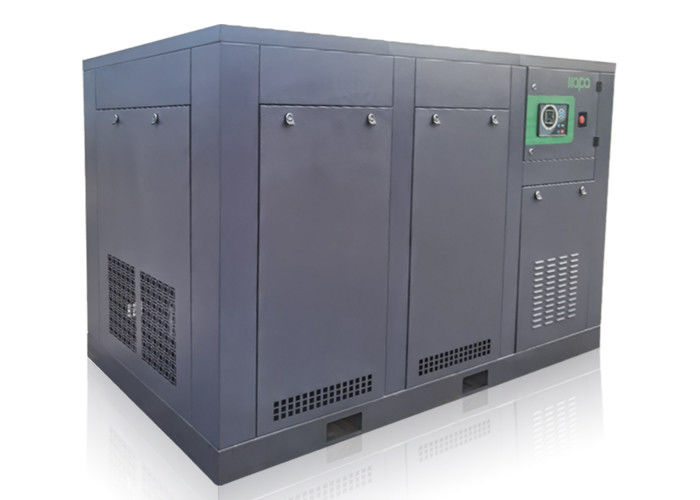

132kw Two Stage Screw Air Compressor 26.95 m³ / min 2780*1580*2160
|1. Air Filter||9. Oil Temperature Control Valve|
|2. Air-in Easing Value||10. Oil Filter|
|3. Principal Screw Machine||11. One-way Shut-off Valve|
|4. Oil Air Separator||12. Pressure Gage|
|5. Oil Air Separating Filter Core||13. Safety Valve|
|6. Minimum Pressure Valve||14. Vent Valve|
|7. Radiator with Aluminum Alloy Fans||15. Compressed Air Dry Separator|
|8. Return Check Valve||16. Motor|
|Power Kw/ HP||90KW/125HP|
|Ambient Temperature ℃||2℃-45℃|
|Lub Oil Capacity Liter||42.3L|
|Noise Level Db(A)||61.2|
|Driven Mode||Direct Drive|
|Starting Mode||power frequency|
|Net Weight kg||2900|
|Out let Diameter inch||RP2-1/2|
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other electricity or other color we will delivery within 25-30 days.
