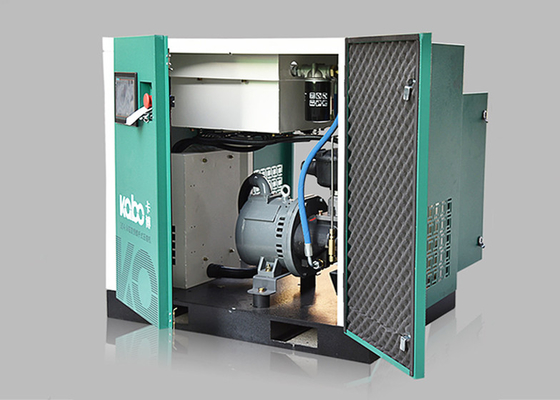

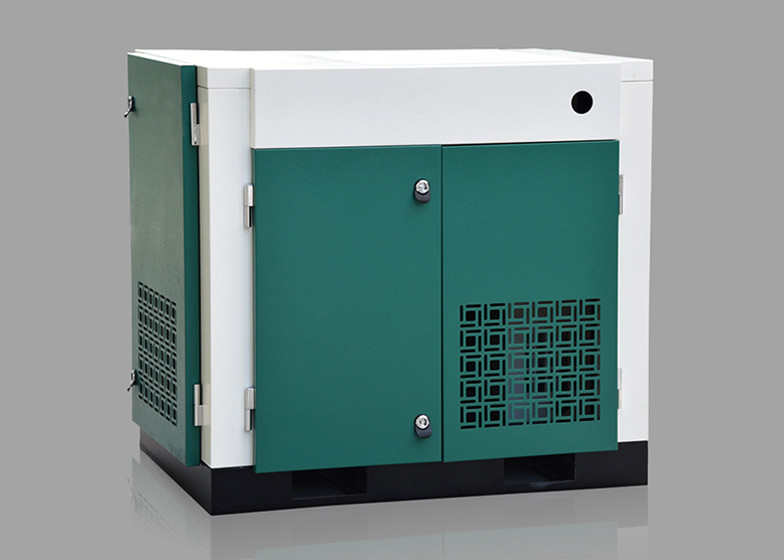

22KW / 30HP Intelligent High Efficiency Industrial Air Compressor 3.3m³ / min 1950*910*1905
Screw air compressor, an air compressor equipment, adopts high-capacity compression components, and its rotor cylindrical speed is low and the best oil injection is achieved, thus realizing high efficiency and high reliability. The latest design ensures extremely low system temperature and compressed air temperature. Ensure that all components achieve the best cooling effect and the longest service life.
1. Screw air compressor has the advantages of high stability, high efficiency, low vibration and low noise.
2. The matching between the positive and negative rotors and the rotor and the casing is set, so that the backflow leakage of gas is less and there is no excess clearance volume at the same time, so the efficiency is high.
3. The injected lubricating oil has the functions of sealing, cooling, noise reduction and lubrication
4. Compared with piston machine, it has less wearing parts and lower failure rate.
5. The working curve of screw compression is smooth, with less vibration and low noise compared with piston machine.
6. Cooling methods are generally divided into water cooling and air cooling.
7. Heat dissipation system: plate-fin structure and high-quality materials are adopted to ensure the pressure resistance, high heat dissipation efficiency and good corrosion resistance of the cooler.
8. Air filter: Heavy-duty, multistage air inlet filter with dust removal accuracy of 1um(98% filtered out), large working face and long relative service life.
9. Oil/gas separator: The new separator adopts brand-new filter material, which has higher efficiency, and the oil content of air is lower than 2ppm.
10. Intelligent controller: All operation and related data of air compressor operation are displayed on the control panel, which is controlled between your fingers, which is easy, convenient and accurate.
|Power Kw/ HP||22KW/30HP|
|Ambient Temperature ℃||2℃-45℃|
|Cooling Mode||Air Cooled|
|Discharge Temp||≤Ambient +15℃|
|Noise Level Db(A)||70±2|
|Driven Mode||Direct Drive|
|Net Weight (kg)||650|
|Out let Diameter (inch)||RP1|
|1. Air Filter||9. Oil Temperature Control Valve|
|2. Air-in Easing Value||10. Oil Filter|
|3. Principal Screw Machine||11. One-way Shut-off Valve|
|4. Oil Air Separator||12. Pressure Gage|
|5. Oil Air Separating Filter Core||13. Safety Valve|
|6. Minimum Pressure Valve||14. Vent Valve|
|7. Radiator with Aluminum Alloy Fans||15. Compressed Air Dry Separator|
|8. Return Check Valve||16. Motor
