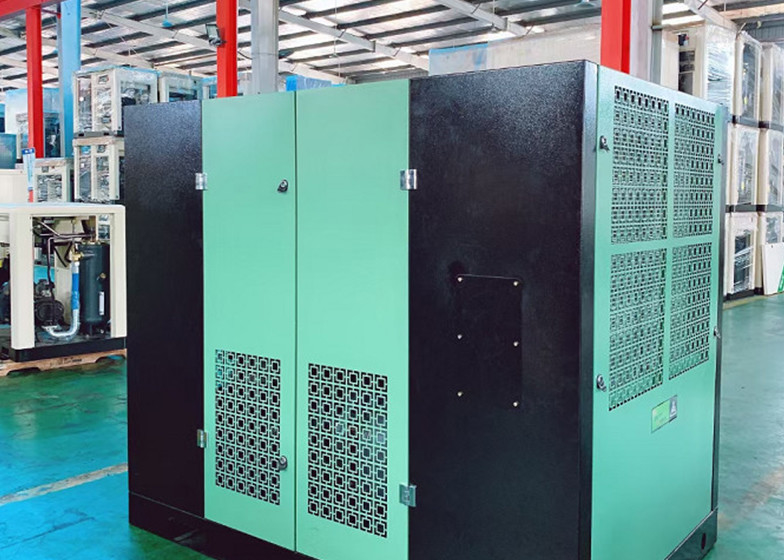

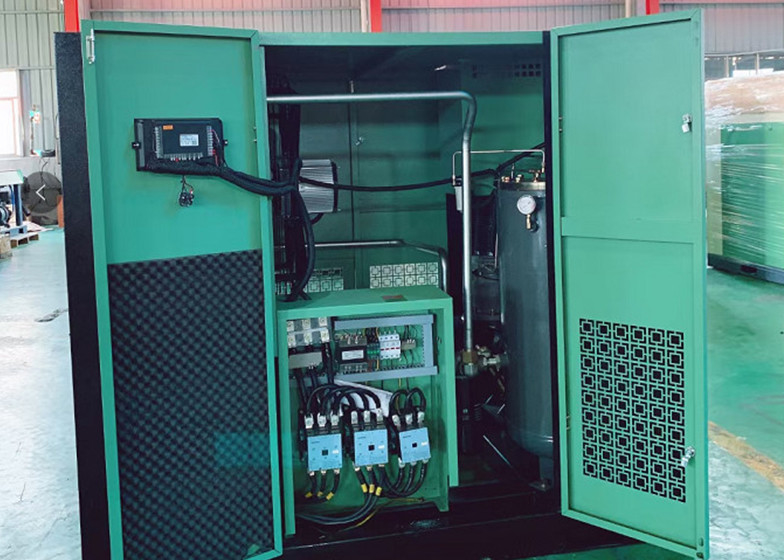

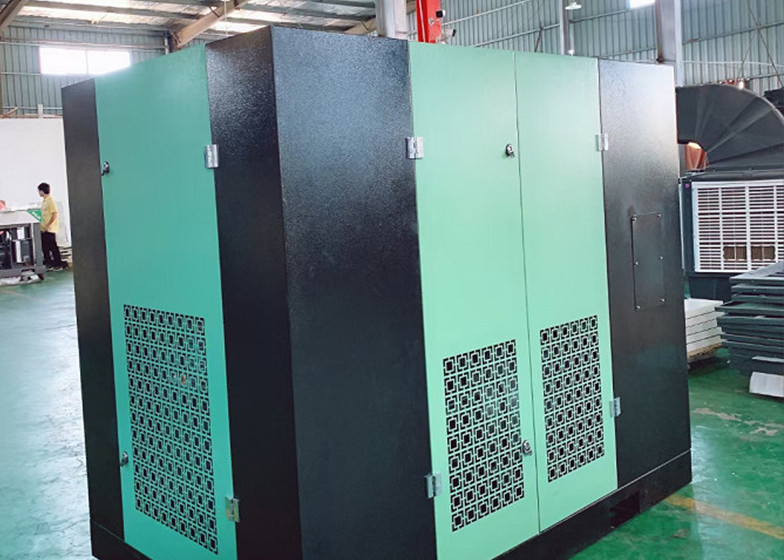

132kw 766cfm Rotary Screw Compressor Direct Drive High Efficiency Screw Air Compressor

Place of Origin CHINA
Brand Name Kapa
Certification CE ITS ISO14001 SGS
Model Number KP132-0.8II
Minimum Order Quantity 1
Price PER UNIT
Packaging Details Ply-Wood box
Delivery Time 25-30 days
Payment Terms L/C, T/T
Supply Ability 2000 SETS PER MONTH
Product Details
Type Screw Air Compressor (M³/Min/Mpa) 21.7/0.8
Power Kw/HP 132KW/180HP Ambient Temperature℃ 2℃-45℃
Discharge Temp ≤Ambient +15℃ Noise Level 75
Drive Mode Direct Drive Power(V/PH/HZ) 380V/50HZ
Dimension(mm) 2500*1470*1840 Net Weight 1600KG
Out Let Diameter(inch) RP2-1/2 Condition New
High Light

132kw Rotary Screw Compressor

,

DN80 Rotary Screw Type Compressor

,

DN80 Two Stage Screw Air Compressor

You can tick the products you need and communicate with us in the message board.
Power (KW) 22 37 45 55 75 90 110
Capacity/Pressure (m3/min/MPa) 4.6-4.1/ 8.0-7.1/ 10.9-9.7/ 13.4-12/ 17.6-16.5/ 20/0.8 24/0.8
Lubricating oil (L) 18 54 72 90 90 110 110
Oil content W 3-5ppm W 3-5ppm W 3-5ppm W 3-5ppm W 3-5ppm W 3-5ppm W 3-5ppm
Drive method Direct driven Direct driven Direct driven Direct driven Direct driven Direct driven Direct driven
Start way PM VSD PM VSD PM VSD PM VSD PM VSD PM VSD PM VSD
Noise db (A) 60~70±2 60~70±2 60~70±2 60-70±2 70-74 70-74 70-74
Length (mm) 1580 1880 2180 2180 2180 2780 2780
Width (mm) 1080 1180 1430 1430 1430 1580 1580
Height (mm) 1290 1520 1720 1720 1720 2160 2160
Weight (Kg) 660 950 1530 1580 1620 2100 2900
Power (KW) 132 160 200 220 250 315
Capacity/Pressure (m3/min/Mpa) 26.95/0.8 33/0.8 45.71/0.8 47/0.8 54/0.8 63/0.8
Lubricating oil (L) 125 125 175 175 200 200
Drive method  Direct driven Direct driven Direct driven Direct driven Direct driven Direct driven
Start way PM VSD PM VSD PM VSD PM VSD PM VSD PM VSD
Noise db (A) 75-78 75-78 75-78 75-78 75-78 75-78
Length (mm) 2500 2980 3650 3650 3650 3650
Width (mm) 1470 1880 1980 1980 1980 1980
Height (mm) 1840 2160 2150 2150 2150 2150
Weight (Kg) 1600 2140 5300 5300 5400 5600
Leave a Message
Power (KW) 22 37 45 55 75 90 110
Product Description

132kw Two Stage Screw Air Compressor 21.7 m³ / min  766cfm Air Flow  Dimensions 2500*1470*1840mm
Description



Spray
All are screw-type compressor with a modem environmental-protection paint. Its surface machining so many years after the use of castings can effectively avoid corrosion.

Shell
The modem word processing centers under the control of the technical specifications for testing. ’The most advanced machinery and the use of modem technology and constant monitoring. It applied to all processing operations. For us on the Company’s compressor quality certification of the commitments made by providing good protection.
Shaft sealing device
Equipped with dual wheels metal framework amine fluoride rubber ring to withstand certain pressures. Formation of the shaft seal can be lubricating device. Bush axis of the company’s exclusive use my special processing technology. A perfect sealing performance and long life.

Rotor
Each screw compressor is the heart of the compressor mainframe. From the latest CNC machine operators of multi-level screw fully automated manufacturing process and materials used by the higher minimum guarantee its tolerance. Reliability stronger. Ground processing and computer control of the multi-step rotor combine. 100% of the rotor to ensure the accuracy of profile.

Bearing
To ensure the speed and load bearing capacity. Using screw compressor bearing capacity of a very high-quality bearings. Guaranteed longer bearing life.



⊙ Schematics



1. Air Filter 9. Oil Temperature Control Valve
2. Air-in Easing Value 10. Oil Filter
3. Principal Screw Machine 11. One-way Shut-off Valve
4. Oil Air Separator 12. Pressure Gage
5. Oil Air Separating Filter Core 13. Safety Valve
6. Minimum Pressure Valve 14. Vent Valve
7. Radiator with Aluminum Alloy Fans 15. Compressed Air Dry Separator
8. Return Check Valve 16. Motor





132kw 766cfm Rotary Screw Compressor Direct Drive High Efficiency Screw Air Compressor 0



Specification



Model Specification KP110-0.8II
Displacement/Pressure (M³/Min/Mpa) 23.81/0.8
Power Kw/ HP 90KW/125HP
Ambient Temperature ℃ 2℃-45℃
Cooling Mode Air-Cooling
Discharge Temp ≤Ambint+15℃
Lub Oil Capacity Liter 42.3L
Noise Level Db(A) 61.2
Driven Mode Direct Drive
Power V/Ph/Hz 380V/50Hz
Starting Mode power frequency
Dimension mm 2780*1580*2160
Net Weight kg 2900
Out let Diameter inch RP2-1/2




132kw 766cfm Rotary Screw Compressor Direct Drive High Efficiency Screw Air Compressor 1


132kw 766cfm Rotary Screw Compressor Direct Drive High Efficiency Screw Air Compressor 2

132kw 766cfm Rotary Screw Compressor Direct Drive High Efficiency Screw Air Compressor 3



Advantages:
1. High-quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us

The longer service life of the master machine
The rotor uses an asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such a way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors are equipped with an effective and fully sealed air-cooling electromotor.

FAQ

Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.
Q2: What the exact address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your requirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can deliver the goods within 10 -15 days. Other electricity or another color we will delivery within 25-30 days.
