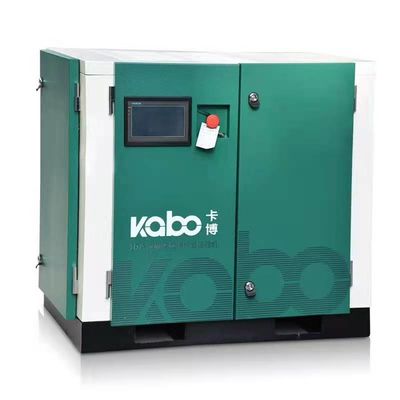

110kw 23.81m3/Min 2780*1580*2160mm Screw Air Compressor
|Type||Screw Air Compressor||(M³/Min/Mpa)||23.81/0.8|
|Power Kw/HP||110KW/125HP||Ambient Temperature℃||2℃-45℃|
|Discharge Temp||≤Ambient +15℃||Noise Level||61.2|
|Drive Mode||Direct Drive||Power(V/PH/HZ)||380V/50HZ|
|Out Let Diameter(inch)||RP2-1/2||Condition||New|
2780*1580*2160mm Screw Air Compressor,
23.81m3/min Screw Air Compressor,
110kw Mobile Air Compressors
|Lubricating oil (L)||18||54||72||90||90||110||110|
|Oil content||W 3-5ppm||W 3-5ppm||W 3-5ppm||W 3-5ppm||W 3-5ppm||W 3-5ppm||W 3-5ppm|
|Drive method||Direct driven|
|Start way||PM VSD|
|Noise db (A)||60~70±2||60~70±2||60~70±2||60-70±2||70-74||70-74||70-74|
|Lubricating oil (L)||125||125||175||175||200||200|
|Drive method||Direct driven|
|Start way||PM VSD|
|Noise db (A)||78-82||78-82||78-82||78-82||78-82||78-82|
110kw Two Stage Screw Air Compressor 23.81 m³ / min 2780*1580*2160
Consider the combination of gas fields and conditions.
If the use of air space is narrow (marine, automotive), it should be vertical; if there is a long-distance change in the use of air (more than 500 meters), it should consider mobile; if the use of electricity can’t be used, it should choose diesel engine driving; if there is no running water in the use of occasions, it must choose air-cooled.
Users often have a wrong idea about air-cooled and water-cooled cooling modes. They think that water-cooled is good. Air-cooled modes account for more than 90% of small air compressors at home and abroad. This is because air-cooled is simple in design and no water source is needed in use.
There are four fatal shortcomings of water-cooled air compressor: it must have complete upper and lower water system with large investment; water-cooled cooler has short life; it is easy to freeze the cylinder in winter in the north; it will waste a lot of water in normal operation.
Asymmetric profile with 5-lobe male rotors and 6 flute female rotors.
Reduced differential pressure between flutes helps decrease backflow, thus, increases adiabatic efficiency by 10~12% and energy saving by 25% as compared with the 4 to 6 profile design.
Casing and bearing seats are integral parts and machined in the same sequence to achieve high precision and to minimize clearances.
A bearing design life of 50,000 hours can beassured by the specially designed short rotors with minimum vibration and bending stress.
Rotors revolve at low speed; thus, low noise level can be guaranteed.
A wide pressure range from 4 to 15kg/cm2G to suit various needs.
|Power Kw/ HP||90KW/125HP|
|Ambient Temperature ℃||2℃-45℃|
|Lub Oil Capacity Liter||42.3L|
|Noise Level Db(A)||61.2|
|Driven Mode||Direct Drive|
|Starting Mode||power frequency|
|Net Weight kg||2900|
|Out let Diameter inch||RP2-1/2|
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
