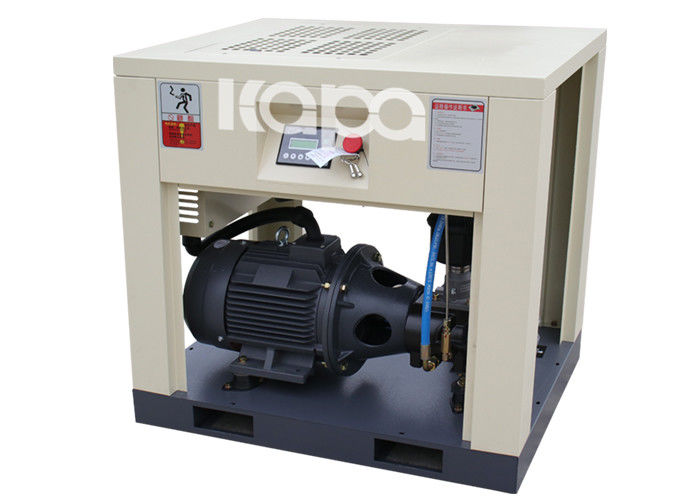

Rotary Screw 15m3/Min 90kw 125hp Direct Drive Compressor

Rotary Screw 15m3/Min 90kw 125hp Direct Drive Compressor

  • High Light

    125hp Direct Drive Compressor

    ,

    90kw Direct Drive Compressor

    ,

    125hp Rotary Screw Compressor

  • Type
    Screw Air Compressor
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • (M³/Min/Mpa)
    15/0.8
  • Power Kw/HP
    90KW/125HP
  • Ambient Temperature℃
    2℃-45℃
  • Cooling Mode
    Air Cooling
  • Discharge Temp
    ≤Ambient +15℃
  • Lub Oil Capacity
    47.05L
  • Noise Level
    75
  • Drive Mode
    Direct Drive
  • Power(V/PH/HZ)
    380V/50HZ
  • Dimension(mm)
    2000*1250*1670
  • Net Weight
    1420kg
  • Out Let Diameter(inch)
    RP2
  • Condition
    New
  • Warranty
    2 Year
  • Place of Origin
    CHINA
  • Brand Name
    Kapa
  • Certification
    CE ISO SGS
  • Model Number
    KB90-125P
  • Minimum Order Quantity
    1
  • Price
    USD 5766 PER UNIT
  • Packaging Details
    Ply Wood box
  • Delivery Time
    25-30 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2000 SETS PER MONTH

Rotary Screw 15m3/Min 90kw 125hp Direct Drive Compressor

15m³ / min Energy Saving Screw Air Compressor 90kw / 125hp 0.8Mpa



Screw Air Compressor Description



Self-developed motor

Rotary Screw 15m3/Min 90kw 125hp Direct Drive Compressor 0

Wider Frequency converting control range:
Permanent-magnet synchronous motor still keep high efficient under slow-speed of revolution,high torque,so the range of frequency converting control mode is wider,more stable operation,quicker response.



High efficient:
The difference of permanent-magnet synchronous motor and common asynchronous motor is rotor structure,permanent
magnet pole is installed to instead of field winding to proceed excitation,no need Reactive excitation current,it will obviously improve power factor,reduce rotor loss,and no copper loss under stable operation,efficient reach more than 96%.







Specification



Model Specification KB90-125P
Displacement/Pressure (M³/Min/Mpa) 15/0.8
Power Kw/ HP 90KW/125HP
CFM 530
Ambient Temperature ℃ 2℃-45℃
CFN 326
Cooling Mode Air-Cooling
Discharge Temp ≤Ambint+15℃
Lub Oil Capacity Liter 47.5L
Noise Level Db(A) 75
Driven Mode Direct Drive
Power V/Ph/Hz 380V/50Hz
Starting Mode power frequency
Dimension mm 2000*1250*1670
Net Weight kg 1420
Out let Diameter inch RP2





Advantages of Kapa brand

Innovate technology to protect the environment

Kappa listens, understands and meets the needs of customers

Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kappa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.



Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)

why choose us



Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.

FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
