RP3/4 Inch Screw Air Compressor

RP3/4 Inch Screw Air Compressor

  • High Light

    RP3/4 Inch Screw Air Compressor


    15kw 20hp Screw Air Compressor


    RP3/4 Inch Screw Type Air Compressor

  • Type
    Screw Air Compressor
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • (M³/Min/Mpa)
  • Power Kw/HP
  • Cooling Mode
    Air Cooling
  • Warranty
    2 Years
  • Noise Level
  • Drive Mode
    Direct Drive
  • Power(V/PH/HZ)
  • Dimension(mm)
  • Net Weight
  • Out Let Diameter(inch)
  • Condition
    New 100%
  • Application
    General Industry , Medical , EPS Production So On
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
    USD 1500-36000 PER UNIT
  • Packaging Details
    Wood box
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    5000 SET PER MONTH

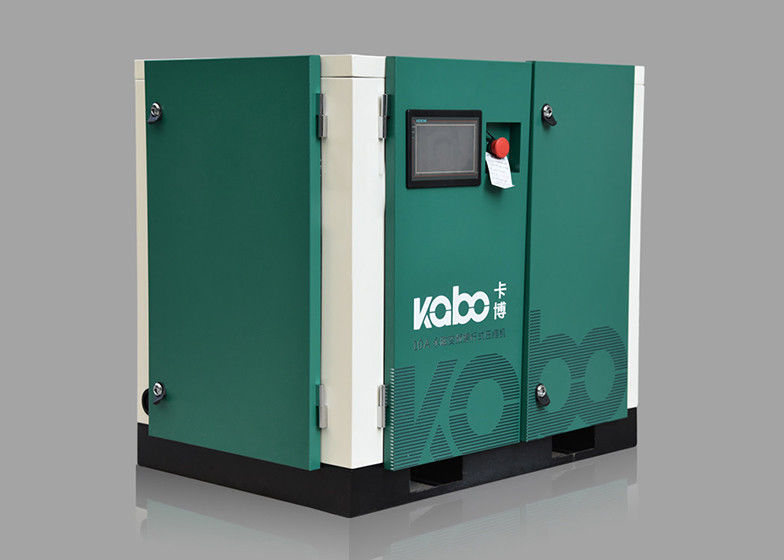

RP3/4 Inch Screw Air Compressor

2.27m³ / min High efficiency stable Screw Air Compressor 15kw 20hp 0.8 Mpa​




Screw Air Compressor ​adopt coaxial integrated design to reduce energy loss of traditional transmission . Dust and sound insulation cotton, 70 dB, kappa technology appearance design, support a variety of model selection, highly integrated, high reliability.




Model Specification KB15-20P
Displacement/Pressure (M³/Min/Mpa) 2.27/0.8
CFM 113.5
Power Kw/ HP 15KW/20HP
Ambient Temperature ℃ 2℃-45℃
Cooling Mode Air-Cooling
Discharge Temp ≤Ambint+15℃
Lub Oil Capacity Liter 11.76
Noise Level Db(A) 70±2
Driven Mode Direct Drive
Power V/Ph/Hz 380V/50Hz
Starting Mode power frequency
Dimension mm 1080*750*980
Net Weight kg 314
Out let Diameter inch RP3/4


 Screw Air Compressor : Energy saving and stability + convenient maintenance + superior price  =  high cost performance ratio


RP3/4 Inch Screw Air Compressor 0



Unique design


Air duct Design :The unique and efficient silent exhaust type is more convenient for cleaning and maintenance, suitable for any environment, and reduces the noise to the minimum .

Tubing Design :The whole series is connected with precision round steel pipe to reduce the wear in the oil circuit, the appearance is more concise, the pipeline is more reliable and the service life is longer.

All computer control :Excellent computer control panel is selected to monitor the operation parameters of the unit in real time, which can realize automatic timing start and stop, remote control, maintenance plan, positive and reverse control, etc.


Screw air compressor work flow chart

RP3/4 Inch Screw Air Compressor 1

Advantages of Kapa brand

1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)


why choose us ?


Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
