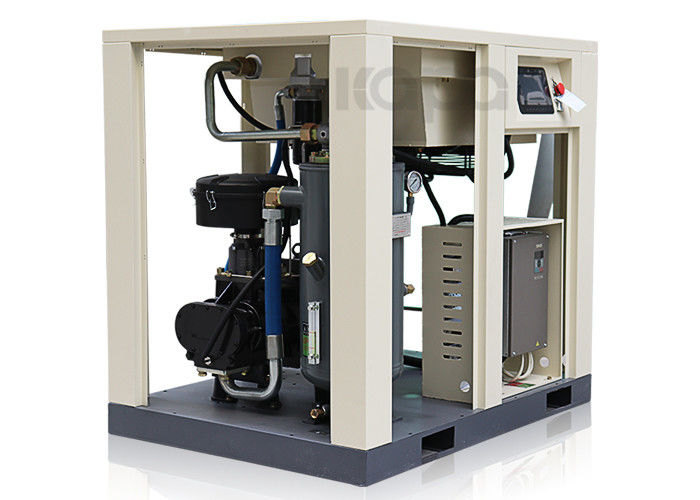

22kw 30 HP Screw Compressor , 0.8Mpa Rotary Type Compressor

Place of Origin CHINA
Brand Name Kapa
Certification CE ISO SGS
Model Number KB22-30P
Minimum Order Quantity 1
Price USD 1825 PER UNIT
Packaging Details Ply-Wood box
Delivery Time 25-30
Payment Terms L/C, T/T
Supply Ability 2000 SETS PER MONTH
Product Details
Type Screw Air Compressor (M³/Min/Mpa) 3.3/0.8
Power Kw/HP 22KW/30HP Lub Oil Capacity 21.17L
Dimension(mm) 1250*850*1140 Net Weight 413KG
Out Let Diameter(inch) RP1 Warranty 2 Year
High Light

0.8Mpa 30 HP Screw Compressor

,

22kw 30 HP Screw Compressor

,

0.8Mpa Rotary Type Compressor

You can tick the products you need and communicate with us in the message board.
Model KB-10HP KB-15HP KB-20HP KB-30HP KB-50HP KB-60HP
Motor Power 7.5kw 11kw 15kw 22kw 37kw 45kw
Capacity/Pressure (m3/min/MPa) 1.2/0.7 1.71/0.7 2.3/0.7 3.8/0.7 6.4/0.7 8.5/0.7
Lubricating oil(L) 12 16 16 22 26 26
Noise db(A) 60-70±2 60-70±2 60-70±2 60-70±2 60-70±2 60-70±2
Length (mm) 900 1080 1080 1250 1340 1340
Width(mm) 650 750 750 850 1000 1000
Height(mm) 870 980 980 1140 1270 1270
Weight(Kg) 155 224 235 320 448 500
Model KB-75HP KB-100HP KB-125HP KB-150HP KB-220HP KB-250HP
Motor Power 55kw 75kw 90kw 110kw 132kw 160kw
Capacity/Pressure (m3/min/MPa) 10.5/0.7 13.2/0.7 16.2/0.7 21.0/0.7 24.6/0.7 31.0/0.7
Lubricating oil(L) 54 54 72 90 90 90
Noise db(A) 70-76±2 70-76±2 70-76±2 70-76±2 70-76±2 70-76±2
Length (mm) 1900 2000 2000 2500 2500 2500
Width (mm) 1250 1250 1250 1470 1470 1470
Height(mm) 1600 1670 1670 1840 1840 1840
Weight(Kg) 840 1340 1420 1600 2140 2360
Leave a Message
Model KB-10HP KB-15HP KB-20HP KB-30HP KB-50HP KB-60HP
Product Description

3.3m³ / min Energy Saving Screw Air Compressor 22kw 30hp 0.8Mpa

Screw air compressor has the advantages of high stability, high efficiency, low vibration and low noise.
The matching between the positive and negative rotors and the rotor and the casing is set, so that the backflow leakage of gas is less and there   is no excess clearance volume at the same time, so the efficiency is high.
The injected lubricating oil has the functions of sealing, cooling, noise reduction and lubrication
 Compared with piston machine, it has less wearing parts and lower failure rate.

Energy saving and stability + convenient maintenance + superior price = high cost performance ratio

22kw 30 HP Screw Compressor , 0.8Mpa Rotary Type Compressor 0



Specification



Model SpecificationKB22-30P
Displacement/Pressure (M³/Min/Mpa)3.3/0.8
Power Kw/ HP22KW/30HP
Ambient Temperature ℃2℃-45℃
CFM116
Cooling ModeAir-Cooling
Discharge Temp≤Ambint+15℃
Lub Oil Capacity Liter21.17L
Noise Level Db(A)75
Driven ModeDirect Drive
Power V/Ph/Hz380V/50Hz
Starting Modepower frequency
Dimension mm1250*850*1140
Net Weight kg413
Out let Diameter inchRP1



Introduce screw air compressor
The working curve of screw compression is smooth, with less vibration and low noise compared with piston machine.
Cooling methods are generally divided into water cooling and air cooling.
 Heat dissipation system: plate-fin structure and high-quality materials are adopted to ensure the pressure resistance, high heat dissipation efficiency and good corrosion resistance of the cooler.
 Air filter: Heavy-duty, multistage air inlet filter with dust removal accuracy of 1um(98% filtered out), large working face and long service life
Unique design
22kw 30 HP Screw Compressor , 0.8Mpa Rotary Type Compressor 1

Transmission (1:1 direct connection) Air end

There is no intermediate transmission, so there is no energy loss

The larger rotor runs at a lower speed, with higher efficiency and further reduces energy consumption

It avoids the situation that the hand is unbalanced in the belt drive, easy to generate heat, easy to break, frequent belt replacement, and often need to readjust the levelness of the pulley and the tension of the belt

Due to the coaxial transmission of elastic coupling, the force is balanced, the vibration is reduced, the reliability is increased and the maintenance cost is reduced

External rotor centrifugal fan

Double inlet centrifugal fan with high efficiency, large air volume, low noise and low energy consumption
4 Oil gas separator with built-in oil separation core in new structure

Ensure that the oil content in the air is less than 3ppm
22kw 30 HP Screw Compressor , 0.8Mpa Rotary Type Compressor 2

 newly designed air intake system

Air intake at normal temperature, energy saving, quiet and convenient maintenance

Advantages of Kapa brand

Innovate technology to protect the environment
Kappa listens, understands and meets the needs of customers
Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kappa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards

Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 25-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
why choose us

Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
