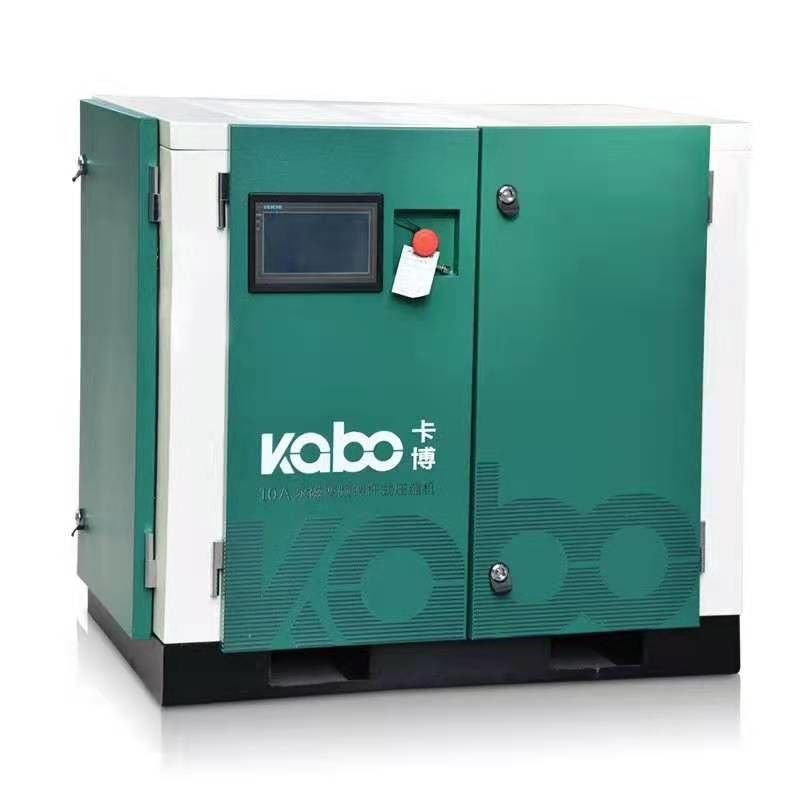

9.25m3/Min 55kw 75hp High Pressure Air Compressor

Place of Origin CHINA
Brand Name Kapa
Certification CE ISO SGS
Model Number KB55-75P
Minimum Order Quantity 1
Price USD 4935 PER UNIT
Packaging Details Ply-Wood box
Delivery Time 25-30 days
Payment Terms L/C, T/T
Supply Ability 5000 SETS PER MONTH
Product Details
Type Screw Air Compressor After-sales Service Provided Engineers Available To Service Machinery Overseas
(M³/Min/Mpa) 9.25/0.8 Power Kw/HP 55KW/75HP
Ambient Temperature℃ 2℃-45℃ Cooling Mode Air Cooling
Discharge Temp ≤Ambient +15℃ Noise Level 75
Drive Mode Direct Drive Power(V/PH/HZ) 380V/50HZ
Dimension(mm) 1900*1250*1600 Net Weight 1230kg
Out Let Diameter(inch) RP2 Condition New
Warranty 2 Year
High Light

75hp High Pressure Air Compressor

,

55kw High Pressure Air Compressor

,

75hp Screw Type Air Compressor

You can tick the products you need and communicate with us in the message board.
Model KB-10HP KB-15HP KB-20HP KB-30HP KB-50HP KB-60HP
Motor Power 7.5kw 11kw 15kw 22kw 37kw 45kw
Capacity/Pressure (m3/min/MPa) 1.2/0.7 1.71/0.7 2.3/0.7 3.8/0.7 6.4/0.7 8.5/0.7
Lubricating oil(L) 12 16 16 22 26 26
Noise db(A) 60-70±2 60-70±2 60-70±2 60-70±2 60-70±2 60-70±2
Length (mm) 900 1080 1080 1250 1340 1340
Width(mm) 650 750 750 850 1000 1000
Height(mm) 870 980 980 1140 1270 1270
Weight(Kg) 155 224 235 320 448 500
Model KB-75HP KB-100HP KB-125HP KB-150HP KB-220HP KB-250HP
Motor Power 55kw 75kw 90kw 110kw 132kw 160kw
Capacity/Pressure (m3/min/MPa) 10.5/0.7 13.2/0.7 16.2/0.7 21.0/0.7 24.6/0.7 31.0/0.7
Lubricating oil(L) 54 54 72 90 90 90
Noise db(A) 70-76±2 70-76±2 70-76±2 70-76±2 70-76±2 70-76±2
Length (mm) 1900 2000 2000 2500 2500 2500
Width (mm) 1250 1250 1250 1470 1470 1470
Height(mm) 1600 1670 1670 1840 1840 1840
Weight(Kg) 840 1340 1420 1600 2140 2360
Leave a Message
Model KB-10HP KB-15HP KB-20HP KB-30HP KB-50HP KB-60HP
Product Description

9.25m³ / min KB55 - 75P Energy Saving Screw Air Compressor 55kw/ 75hp 0.8Mpa



Screw Air Compressor Description

Large industrial grade special purpose



First-class energy efficiency, saving environmental protection
Bao Si mainframe, stable and durable
Grade soundproof cotton, low noise
Direct drive coaxial integrated design
High efficiency motor with fast heat dissipation



Efficient dual-stage host, strong efficiency
Synthetic lubricating oil for more than 4000 hours
Intelligent control
Capable of IoT 8 function
Mobile application remote control



Air end

9.25m3/Min 55kw 75hp High Pressure Air Compressor 0



Adpot high efficiency air end , low bearing noise, adopt oil fog shower cooling, holding body constant temperature movemet.







Specification



Model Specification KB55-75P
Displacement/Pressure (M³/Min/Mpa) 9.25/0.8
Power Kw/ HP 55KW/75HP
Ambient Temperature ℃ 2℃-45℃
CFN 326
Cooling Mode Air-Cooling
Discharge Temp ≤Ambint+15℃
Lub Oil Capacity Liter 41.7L
Noise Level Db(A) 75
Driven Mode Direct Drive
Power V/Ph/Hz 380V/50Hz
Starting Mode power frequency
Dimension mm 1900*1250*1600
Net Weight kg 1230
Out let Diameter inch RP2





Advantages of Kapa brand

Innovate technology to protect the environment

Kappa listens, understands and meets the needs of customers

Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kappa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.



Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 25-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)

why choose us



Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.

FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 25-30 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
