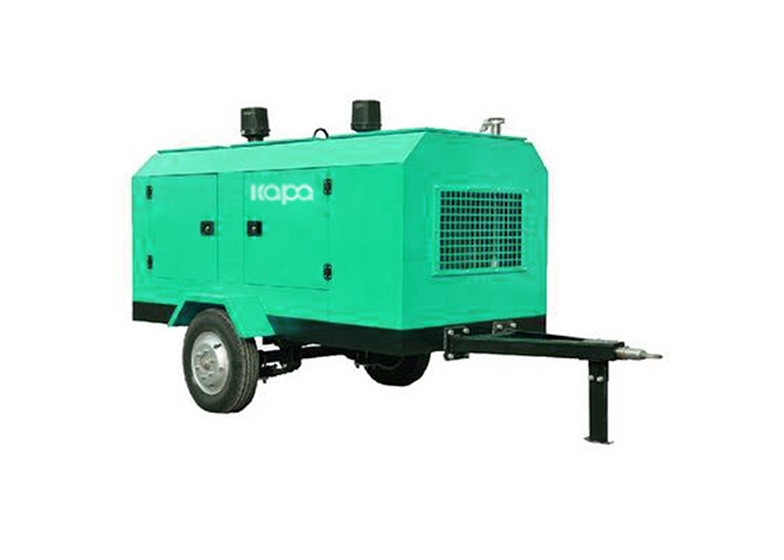

Oil Lubricated 9M3/Min 1.4Mpa Portable Diesel Air Compressor

Oil Lubricated 9M3/Min 1.4Mpa Portable Diesel Air Compressor

  • High Light

    1.4Mpa Portable Diesel Air Compressor

    ,

    9M3/Min Portable Diesel Air Compressor

    ,

    1.4Mpa Diesel Portable Air Compressor

  • Condition
    New
  • Power Source
    Diesel
  • Transmission Way
    Direct Driven
  • Lubricated/Oil Less
    Wooden Box Package
  • Configuration
    Portable
  • Color
    Green
  • Voltage
    220V-380V
  • Power Source
    AC Power
  • Place of Origin
    China
  • Brand Name
    Kapa
  • Certification
    CE ISO9001
  • Model Number
    Portable Screw Air Compressor
  • Minimum Order Quantity
    1
  • Price
    USD 4100-13000
  • Packaging Details
    WOOD BOX
  • Delivery Time
    10-15 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    5000PER MONTH

Oil Lubricated 9M3/Min 1.4Mpa Portable Diesel Air Compressor

Oil Lubricated Portable Screw Air Compressor For Road Construction 9 M3/Min



Application of diesel engine portable screw air compressor



Diesel engine portable compressors are widely used in railroad construction, building construction, shipyard, mining and most of the outdoor operation. Through the cutting edge production technology and intelligent engineering, our compressor offers the best perfomance portable screw compressor



Advantages



1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime.

2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.

3.Conplete protection function with fault alarm and indication

4.Efficient filtering and seperating system.

5.Large oil-after cooler ensures the machines in optimum operation temperature when the ambient temperature is high.

6.Efficient air-cooled enclosed motor.

7.Super low noise.



The Features of the  Diesel Portable Air Compressor





1.Energy Saving - Saving of the diesel is equivalent to one set price of diesel lg air compressor and Lower noise level



2.Air end-large diameter rotor of the portable air compressor, air end connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan



3.Diesel engine-select the diesel engine of CUMMINS brand for this diesel portable air compressor, satisfy the emission requirement of Europe, low oil consumption, after sale service system all over China.



4.Good adaptability-The diesel portable lg air compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power portable lg air compressor



Technical Parameters of  Diesel Portable  Air Compressor





 Diesel engine portable screw air compressor
Air compressor
Model portable screw air compressor
Air delivery ( m3/min) 9
Working pressure ( Mpa) 1.4
Size(mm) 4080*1980*2350
Tire Size*Qty 7.50-16x4
Manufacturer cummins
Engine model no NTA855-P400
Type Screw type
Way breathing supercharged and mid-cooling
Diameter *stroke * number of cylinders 140x152x6
Displacement(L) 14
Rated speed(r/min) 1800
Unloading speed(r/min) 1400
Rated power kW(HP) 298(400)
Engine oil capacity (L) 30
fuel capacity(L) 530
electrical system voltage (v) 24
No of compression stage 2
Compressor oil capacity(L) 48
air supply valve G2x1,G3/4x1


Portable Screw Air Compressor



Helps save oil consumption by 100 L per day.

Three-level air filtration system

Three-level oil and air separation system

Lubricant filter with a precision of 10 μ

Highly efficient refrigeration system

Axial flow valve

Fully enclosed chassis and soundproof enclosure

A single hanging ring on top is easy for loading and unloading purposes

Heavy-duty portable chassis

Microcomputer-controlled interface

Special lubricant for air compressors



Patented SKY2 Compressors



Designed with a maximum pressure of 40 bar

Rotary: The SKY 2 Screw Engine is a patented rotary with the highest efficiency. Its high pressure ensures its large displacement.

Two-stage compression: its flexible design, which is a world-class patented invention, is compatible to poppet valves.

With the heavy-duty SKF bearing and the direct drive in place, it provides noiseless gearwheels.

With its optimal structure, it provides the most reliable performance.

With a switch design for dual working conditions, users may choose the working conditions of 33 m3 at a pressure of 2.5 MPa, or the working conditions of 25 m3 at a pressure of 3.5 MPa. The switch can be done easily and quickly.



Heavy-duty electric diesel injection engine



Variable fuel injection system: direct fuel injection of high pressure common rail.

It can be equipped with heavy-duty electric diesel injection engines, including Cummins and Yuchai. Based on the loading conditions, oil injection can be electronically and precisely controlled, thus ensuring the best combustion state during the entire operation of an engine. This product features combustion that is more economical with better reliability and stronger dynamic performance.



Standard configuration



Patented SKY 2-40 Air Compressors

Heavy-duty electric diesel injection engine

Compressor controller

Soundproof enclosure

Eco-friendly and fully-enclosed chassis

Heavy-duty air filter

High-capacity fuel tank



Selective configuration



Air compressors with dual working conditions

Diesel engine

After-cooler

Air and water separation and drain valve

Fuel heating system

Remote control system
