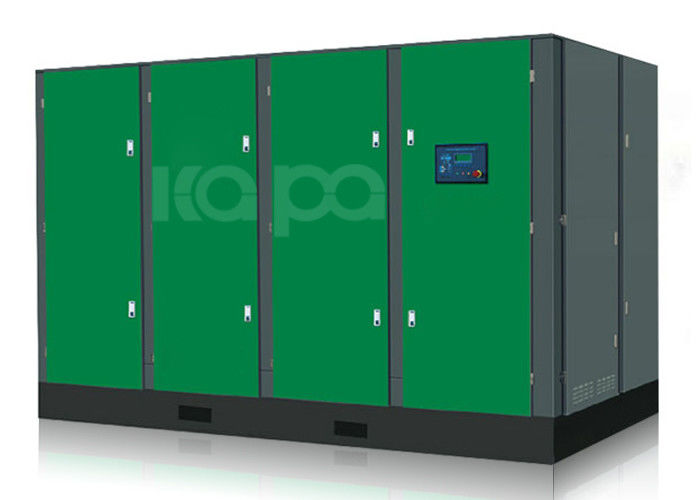

45kw / 60Hp 7.1m³／min Permanent Magnet Variable Frequency air compressor 1463*1060*1315
Description
Characteristics of permanent magnet variable frequency air compressor:
The essence of high-efficiency frequency conversion of permanent magnet is to control the rotation of space magnetic field of electric bai machine.
The stator winding generates a rotating magnetic field synchronized with the power frequency through three-phase alternating current.
Basic components of permanent magnet synchronous motor: stator winding, rotor and machine body.
The rotor is a permanent magnet made of permanent magnet material, which starts to rotate under the action of the rotating magnetic field generated by the stator winding.
Energy saving effect of permanent magnet frequency conversion air compressor
The biggest advantage of permanent magnet variable frequency air compressor is energy saving, which can generally save 10%~35%. The amount of energy saving depends on the working condition of air compressor and the setting of inverter parameters. The biggest factor is the working condition of the air compressor. When the customer's gas consumption fluctuates greatly, the better the energy-saving effect will be. The most direct data is the proportion of the idle time to the total working time.
Specification
|
Model
Specification |
KL40-50P/YC |
| (M³/Min/Mpa) | 7.1／0.8 |
| Power Kw/ HP | 40KW/54HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air Cooling |
| Discharge Temp | ≤Ambient +15℃ |
| Lub Oil Capacity (Liter) | 22L |
| Noise Level Db(A) | 75 |
| Driven Mode | Direct Drive |
| Power (V/Ph/Hz) | 380V/50Hz |
| Starting Mode | VFS |
| Dimension (mm) | 1463*1060*1315 |
| Net Weight (kg) | 620 |
| Out let Diameter (inch) | RP2-1/2 |
Unique design
Advantages of Kapa brand
why choose us
Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
Our products are sold all over the world, you can rest assured.
