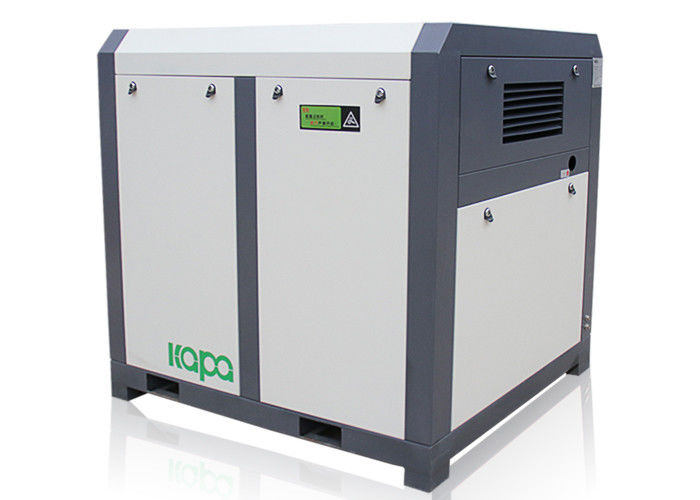

Air Cooling 30KW 5.9m3/Min Screw Air Compressor

Air Cooling 30KW 5.9m3/Min Screw Air Compressor

  • High Light

    5.9m3/min Screw Air Compressor

    ,

    30KW Screw Air Compressor

    ,

    5.9m3/min Screw Type Air Compressors

  • Type
    Two Stage Screw Air Compressor
  • (M³/Min/Mpa)
    5.9/0.8
  • Power Kw/HP
    30KW/40HP
  • Ambient Temperature℃
    2℃-45℃
  • Cooling Mode
    Air Cooling
  • Discharge Temp
    ≤Ambient +15℃
  • Lub Oil Capacity
    25.4L
  • Noise Level
    75
  • Drive Mode
    Direct Drive
  • Power(V/PH/HZ)
    380V/50HZ
  • Dimension(mm)
    1880*1180*1520
  • Net Weight
    920KG
  • Out Let Diameter(inch)
    RP1-1/2
  • Condition
    New
  • Place of Origin
    CHINA
  • Brand Name
    Kapa
  • Certification
    CE ISO SGS
  • Model Number
    KB30-0.8
  • Minimum Order Quantity
    1
  • Price
    USD 2500 PER UNIT
  • Packaging Details
    Ply-Wood box
  • Delivery Time
    25-30 DAYS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2000 SET PER MONTH

Air Cooling 30KW 5.9m3/Min Screw Air Compressor

30KW Two Stage Screw Air Compressor 5.9 m ³/ min 1880*1180*1520



Description

Air Cooling 30KW 5.9m3/Min Screw Air Compressor 0



Special for large-scale industry

First-class energy efficiency, saving environmental protection
Bao Si mainframe, stable and durable
Grade soundproof cotton, low noise
Direct drive coaxial integrated design
High efficiency motor with fast heat dissipation

Two Stage Screw Air Compressor

Efficient dual-stage host, strong efficiency
Synthetic lubricating oil for more than 4000 hours
Intelligent control
Capable of IoT 8 function
Mobile APP remote control

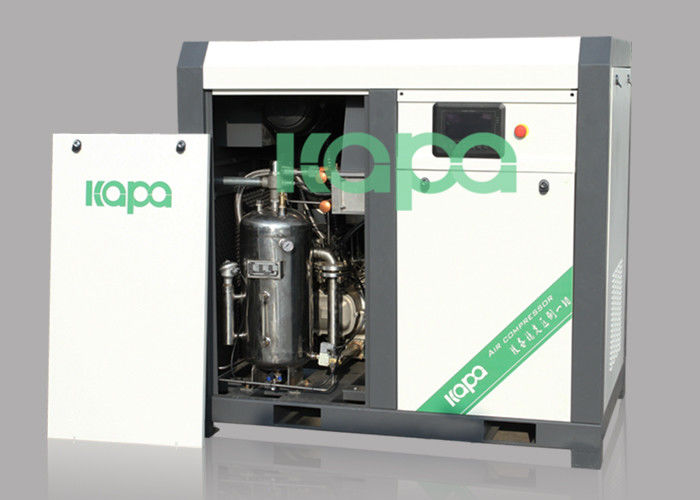

Two-stage air end

Feature

In terms of the amount of gas produced by the motor with the same power, the two-stage ratio is higher than that of the single machine
The stage height is 13%-15%, which is equivalent to a 90KM double-stage compressor which can produce the gas volume of a 110 single-stage compressor under the same energy consumption

Advantages

Compared with the two-stage main engine, the high-temperature air compressed by the two-stage compressor in the first stage is cooled by oil injection, and the air passes through the equal compressor, which reduces the suction temperature of the second stage. The whole compression process approaches isothermal compression, reducing the power consumption of the compressor, reducing the compression ratio of each stage in the two-stage compression, reducing the seal leakage between rotors and significantly improving the volumetric efficiency of the main engine

Air Cooling 30KW 5.9m3/Min Screw Air Compressor 1



Specification



Model Specification KB30-0.8
Displacement/Pressure (M³/Min/Mpa) 5.9/0.8
Power Kw/ HP 30KW/40HP
Ambient Temperature ℃ 2℃-45℃
Cooling Mode Air-Cooling
Discharge Temp ≤Ambint+15℃
Lub Oil Capacity Liter 25.4L
Noise Level Db(A) 75
Driven Mode Direct Drive
Power V/Ph/Hz 380V/50Hz
Starting Mode power frequency
Dimension mm 1880*1180*1520
Net Weight kg 950
Out let Diameter inch RP1-1/2





Advantages of Kapa brand

Innovate technology to protect the environment

Kappa listens, understands and meets the needs of customers

Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kappa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.







Advantages:
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 25-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)

why choose us



Longer service life of the master machine
The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.

FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
